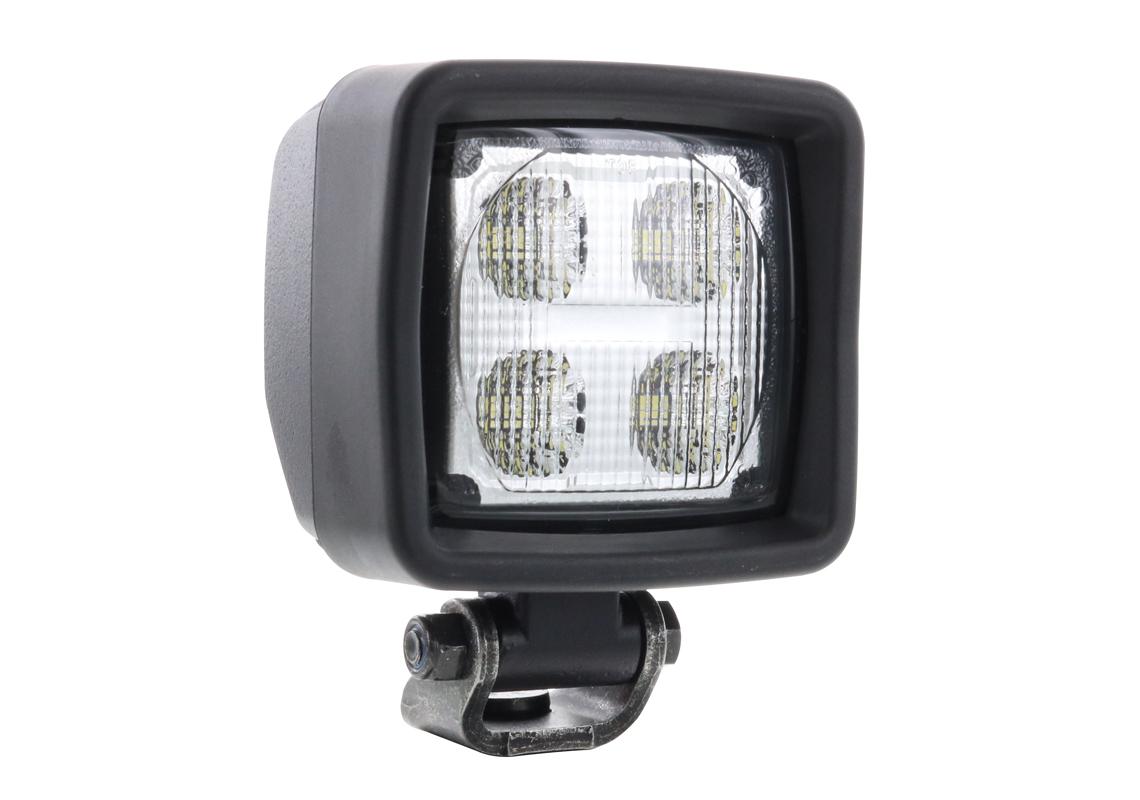

SHD 5000 LED - Work light Heavy LED Flood Asymmetrical 5000 Lumen
Ref. D16124 Show/hide other part numbers
- Ref. A0787A7737C3
- Voltage : 12/24 V
- Source : LED
- Amperage : 2 AMP at 24V
- Consumption : 48W
- Operational Lumen : 5000 Lumen
- Connector : DT 2 pin
Not all products are available in all markets.
Technical characteristics
| Brand | ABL | |
|---|---|---|
| Product Type | Work light Heavy LED | |
| Voltage | 12/24 V | |
| Source | LED | |
| Amperage | 2 AMP at 24V | |
| Consumption | 48W | |
| Operational Lumen | 5000 Lumen | |
| Color Temperature | 6000 K | |
| Light pattern | Flood Asymmetrical | |
| Color | White | |
| Connector | DT 2 pin | |
| Mounting | Pedestal, suspended | |
| Lens Material | Hardened glass | |
| Shape | Square | |
| Depth | 90 mm | |
| Height | 98 mm | |
| Weight | 1,1 Kg | |
| IP protection | IP68 - IP69K | |
| Polarity | Protected against reverse voltage | |
| Electronic Thermal Management | Full output at +35°C ambiant, 25 % dimmed at + 50°C ambiant | |
| Operation Temperatures | -40°C to +85°C | |
| Load Dump | 36V CONTINUOUS / ISO 7637-2 Pulse 5a | |
| Salt Spray Test | ISO 9227 | |
| Vibration Resistance | 20 Grms, from 24Hz to 2000Hz | |
| Shock resistance | 80G | |
| Lifetime | 30 000 operating hours | |
| Warranty | 30 000 operating hours or 5 years | |
| EMC | ISO 13766 - ISO 14982 - ISO 12985 - CISPR25 Class 5 | |
| Industry | Construction, Forestry, Mining, Priority vehicle |
