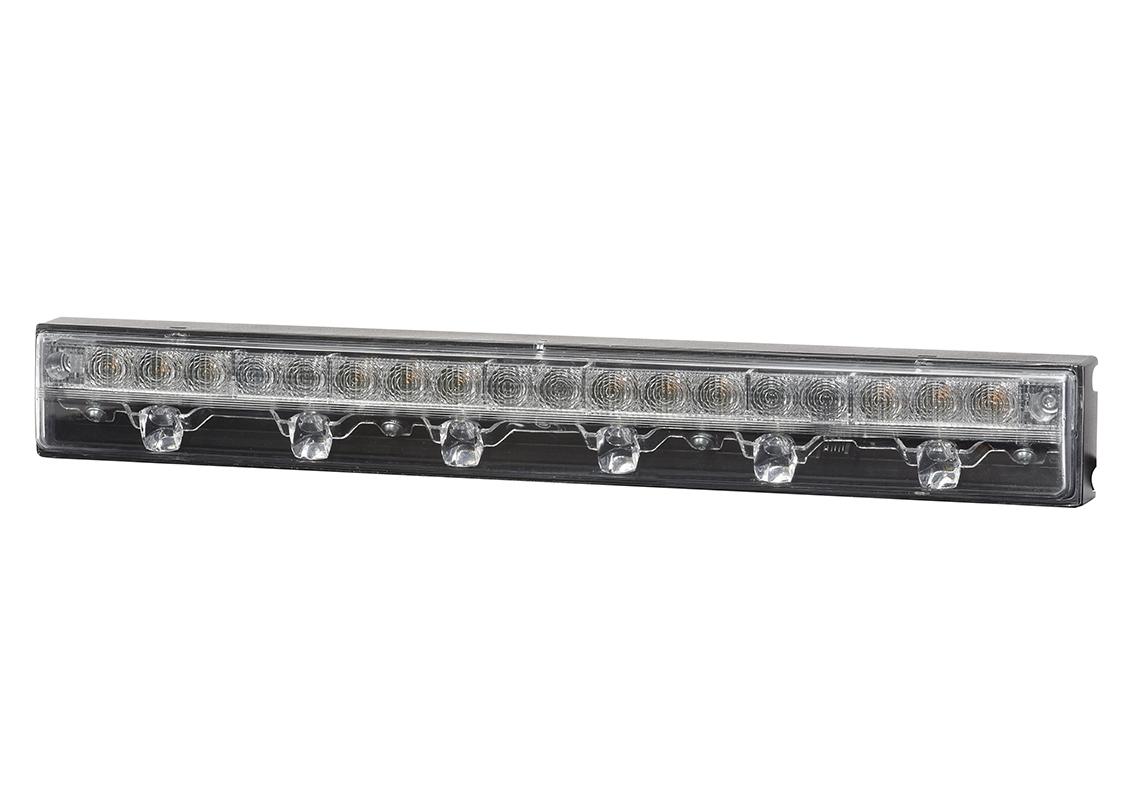

BL15 LED - Barlight LED Right with DT4 connector rear fixation
Ref. 165030 Show/hide other part numbers
- Ref. BL15 CD
- Ref. 21155
- Voltage : 24V
- Source : LED
- Connector : DT4
- Side : Right
- Fixation Bolt Distance : 340 mm
Not all products are available in all markets.
Technical characteristics
| Brand | VIGNAL | |
|---|---|---|
| Product Type | Complete lamp | |
| Manufacturer | Chereau | |
| Voltage | 24V | |
| Source | LED | |
| Connector | DT4 | |
| Mounting Direction | Horizontal | |
| Side | Right | |
| Cable Length | 218 mm | |
| Shape | Rectangle | |

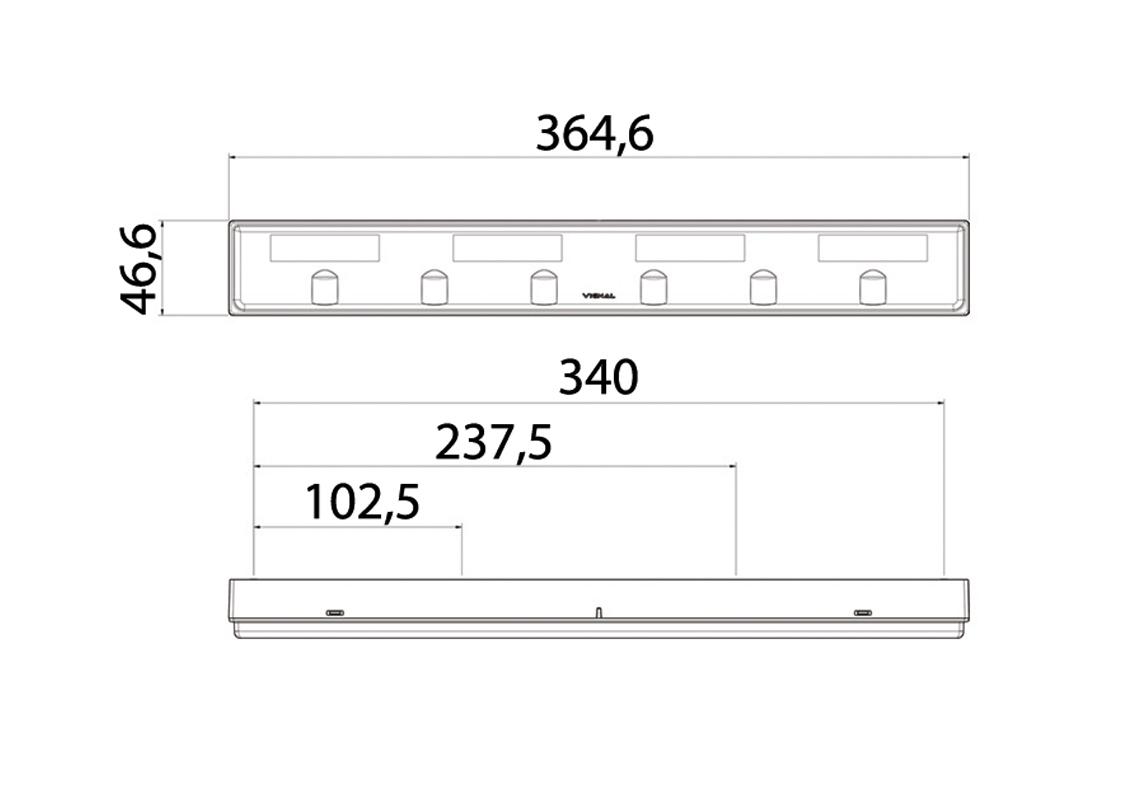

| Fixation Bolt Distance | 340 mm | |
| Length | 365 mm | |
| Depth | 29 mm | |
| Main Functions | Dynamic indicator, warning, work light | |
| IP protection | IP6K9K | |
| ECE | E2 16007 | |
| Industry | Agriculture, Construction, Forestry, Handling and Forklifts, Mining, Trucks, Vans and Chassis cab |
