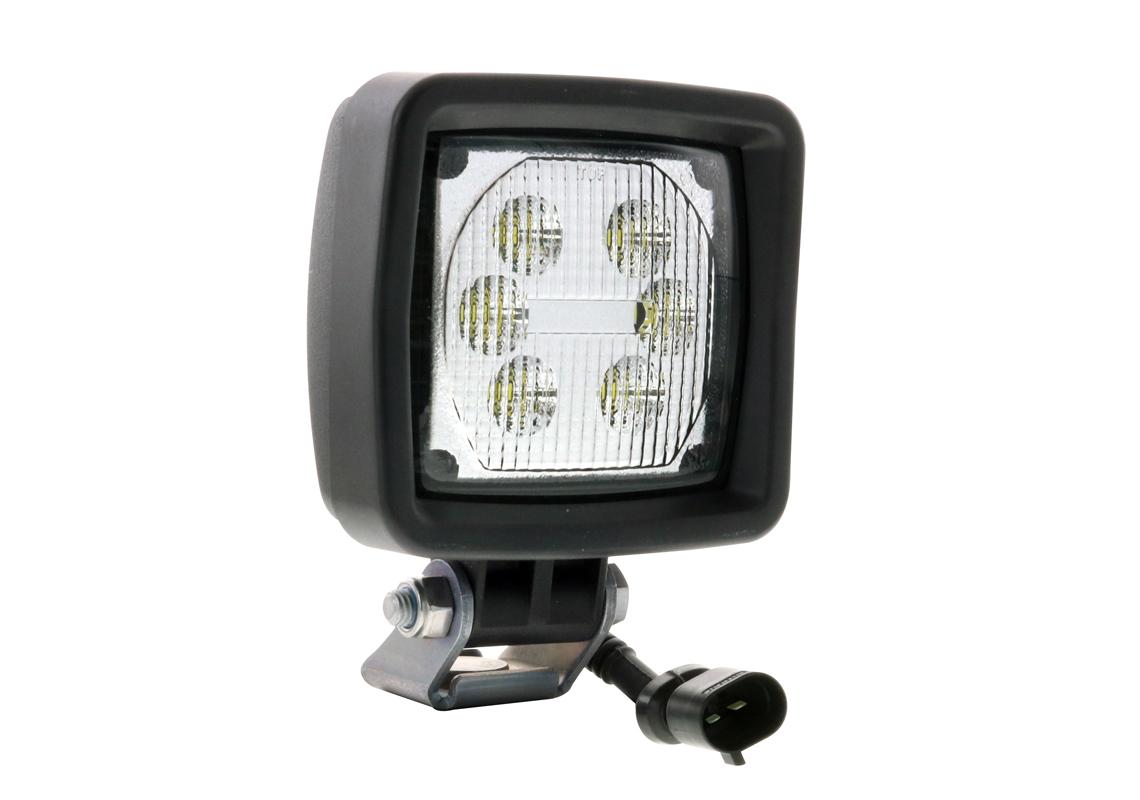

SL / SLA LED - LED compact work light 2000 Lumen - MAN
Ref. D16110 Show/hide other part numbers
- Ref. SLA 2000 LED
- Ref. A0787A7548C3
- Ref. 81.25103-6076
SLA 2000 LED worklight with cable and two-way male LEAR connector. As standard this work light includes features such as the EMC CISPR25 class 5 as well as the integrated load dump, to meet the most severe manufacturer specifications.
Read more
- Voltage : 12/24 V
- Operational Lumen : 2000 Lumen
- Connector : Cable + 2 pin LEAR connector
- Load Dump : 36V CONTINUOUS / ISO 7637-2 Pulse 5a
- EMC : ISO 13766 - ISO 14982 - ISO 12985 - CISPR25 Class 5
Not all products are available in all markets.
Technical characteristics
| Brand | ABL | |
|---|---|---|
| Product Type | Work light | |
| Manufacturer | Man | |
| Voltage | 12/24 V | |
| Source | LED | |
| Amperage | 1,2 AMP at 24V | |
| Consumption | 29W | |
| Operational Lumen | 2000 Lumen | |
| Color Temperature | 6000 K for crystal version | |
| Light pattern | Flood | |
| Color | Crystal | |
| Connector | Cable + 2 pin LEAR connector | |
| Mounting | Pedestal | |
| Fixation | To be screwed | |
| Lens Material | Hardened glass | |
| Housing Material | Aluminium | |
| Shape | Square | |
| Width | 102 mm | |
| Depth | 63 mm | |
| Height | 97 mm | |
| Weight | 0,55 Kg | |
| IP protection | IP68 - IP69K | |
| Polarity | Protected against reverse voltage | |
| Electronic Thermal Management | Full output at +35°C ambiant, 25 % dimmed at + 50°C ambiant | |
| Operation Temperatures | -40°C to +85°C | |
| Load Dump | 36V CONTINUOUS / ISO 7637-2 Pulse 5a | |
| Salt Spray Test | ISO 9227 | |
| Vibration Resistance | 15 Grms, from 24Hz to 2000Hz | |
| Shock resistance | 60G | |
| Lifetime | 30 000 operating hours | |
| EMC | ECE R10, ISO 13766 - ISO 14982 - ISO 12985 - CISPR25 Class 5 | |
| Industry | Agriculture, Construction, Priority vehicle, Trailers and Semi-trailers, Trucks |
Applications
Construtor
Model
reference
Start date
End date
Construtor :
MAN
Model :
TGA - TGL - TGM - TGX - TGS
reference :
81.25103-6076
Start date :
01/2022
End date :
