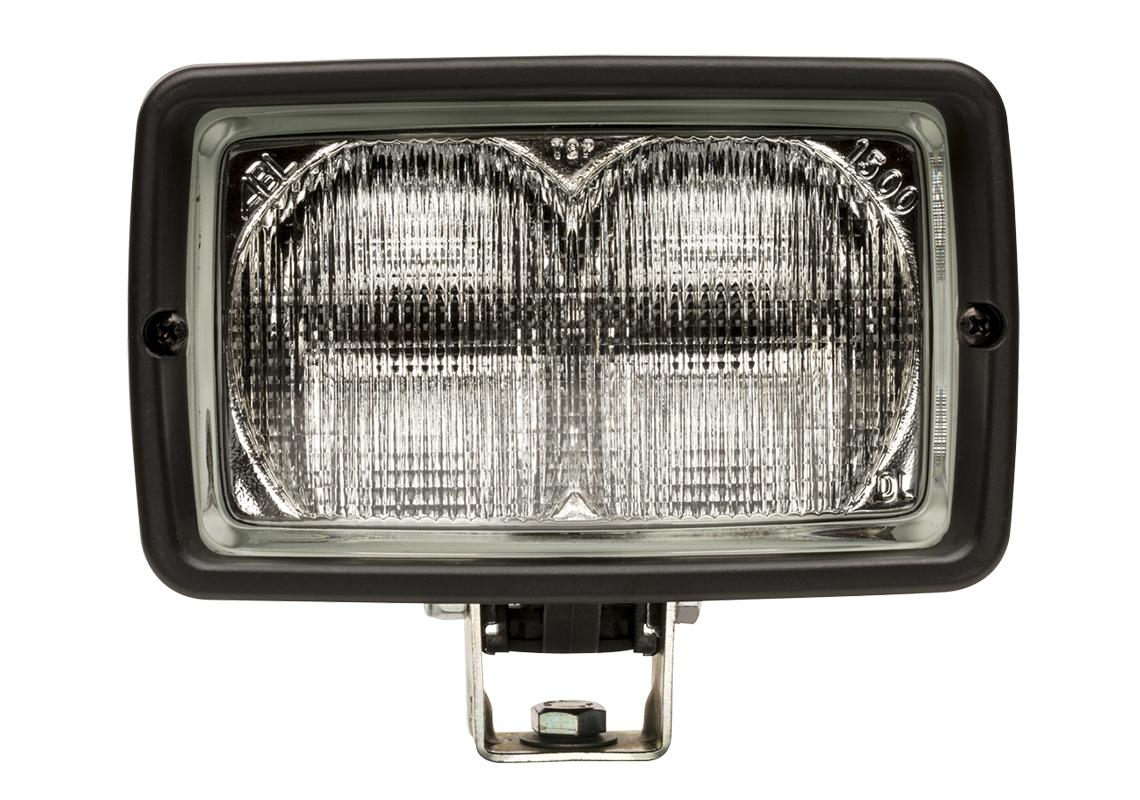

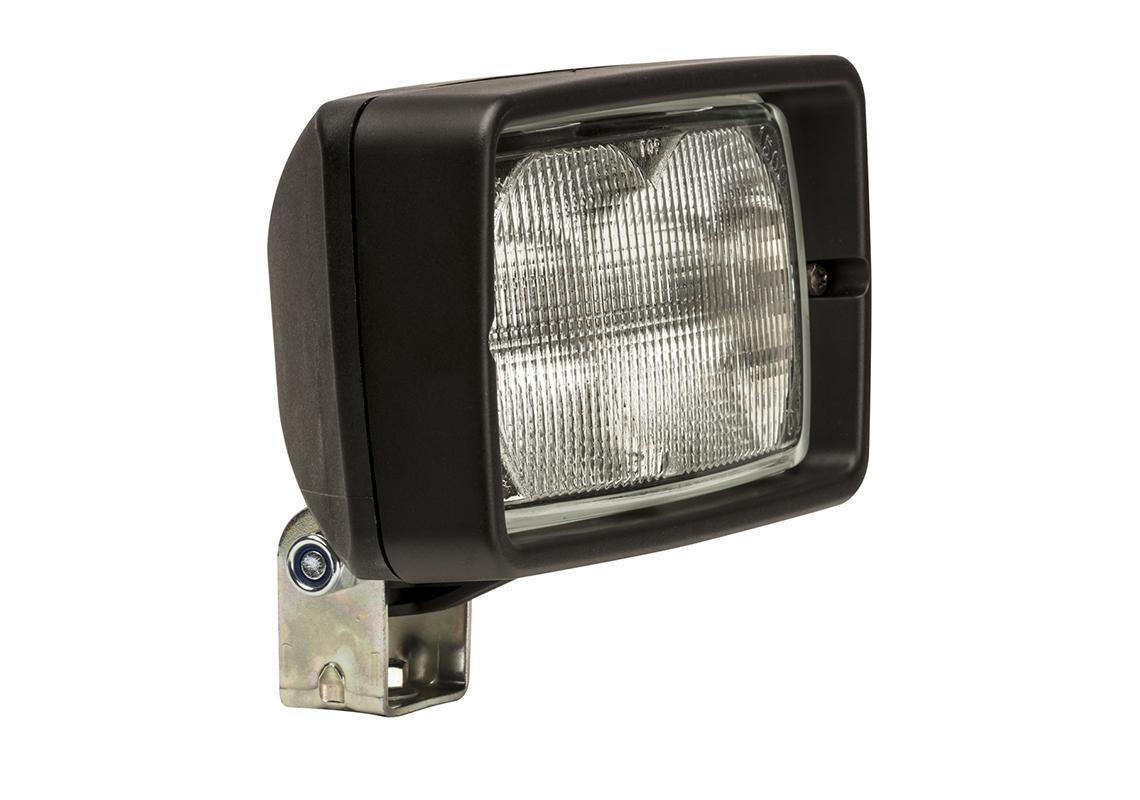

Q H3 02 - Work light Halogen 12V, 24V, 36V, 48V, 80V
Ref. QH302RANGE_FL
- Voltage : 12V, 24V, 36V, 48V, 80V
- Source : HALOGEN
- Bulb : 2 X H3 BULB, 70W max (140W max total)
- Amperage : 5,84 AMP at 24V
- Connector : AMP, DT, grommet, wire compression seal
Not all products are available in all markets.
Technical characteristics
| Brand | ABL | |
|---|---|---|
| Product Type | Work light | |
| Voltage | 12V, 24V, 36V, 48V, 80V | |
| Source | HALOGEN | |
| Bulb | 2 X H3 BULB, 70W max (140W max total) | |
| Amperage | 5,84 AMP at 24V | |
| Light pattern | Flood | |
| Connector | AMP, DT, grommet, wire compression seal | |
| Mounting | Pedestal, suspended, side mount | |
| Fixation | To be screwed | |
| Lens Material | Hardened glass | |
| Housing Material | Black fibre reinforced plastic | |
| Shape | Rectangle | |

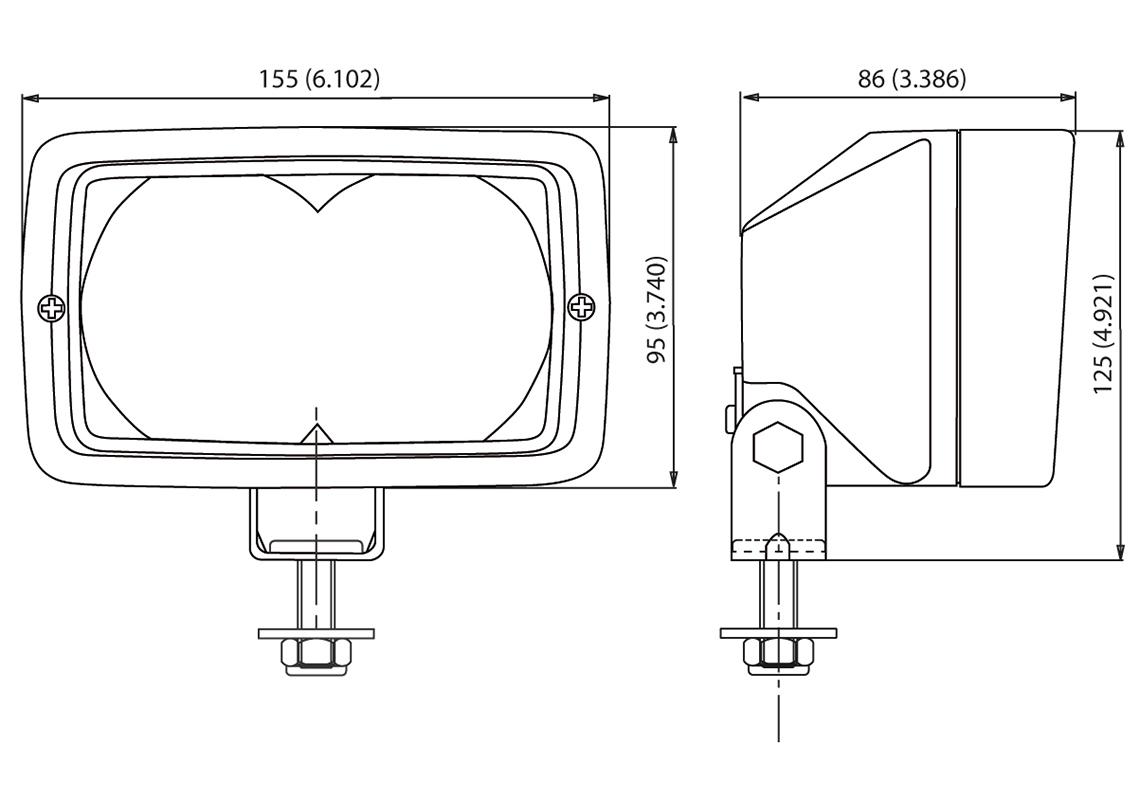

| Length | 155 mm | |
| Depth | 86 mm | |
| Height | 95 mm | |
| IP protection | IP54 (grommet) - IP66 - IP69K (connectors) | |
| Operation Temperatures | -40°C to +85°C | |
| Salt Spray Test | ISO 9227 | |
| Industry | Agriculture, Buses and Coaches, Construction, Forestry, Handling and Forklifts, Priority vehicle, Trailers and Semi-trailers, Trucks, Vans and Chassis cab |
