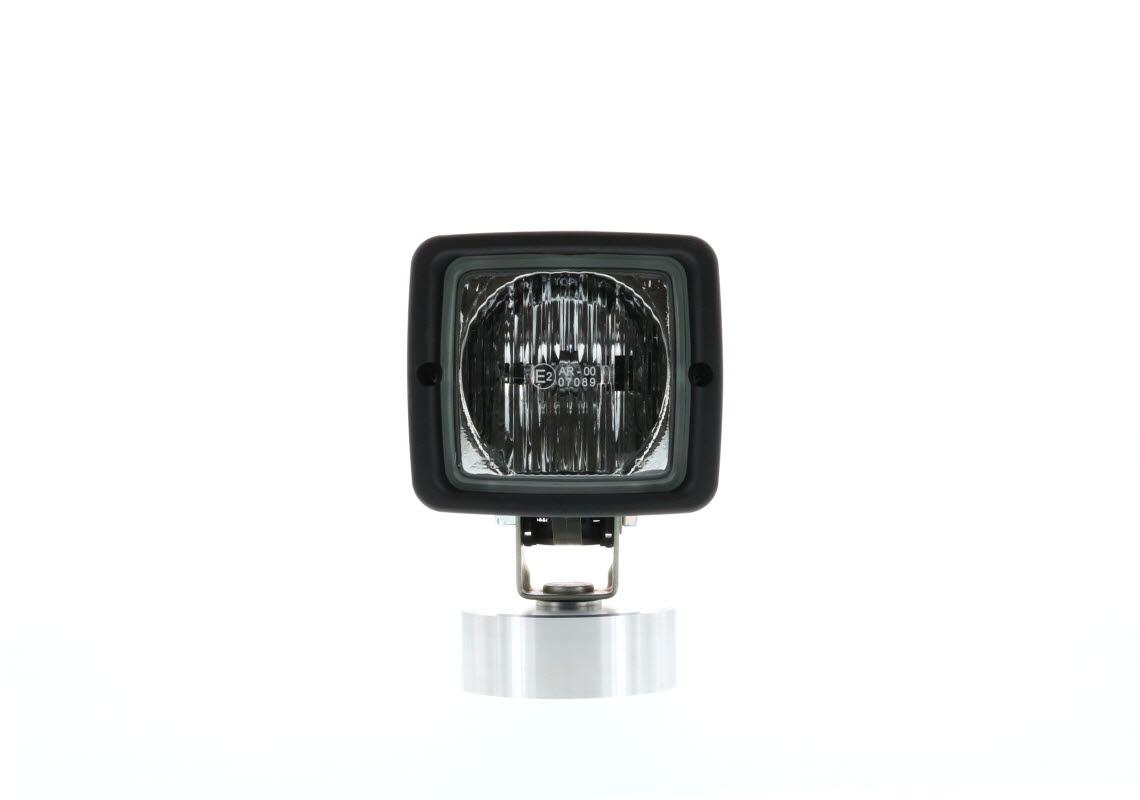

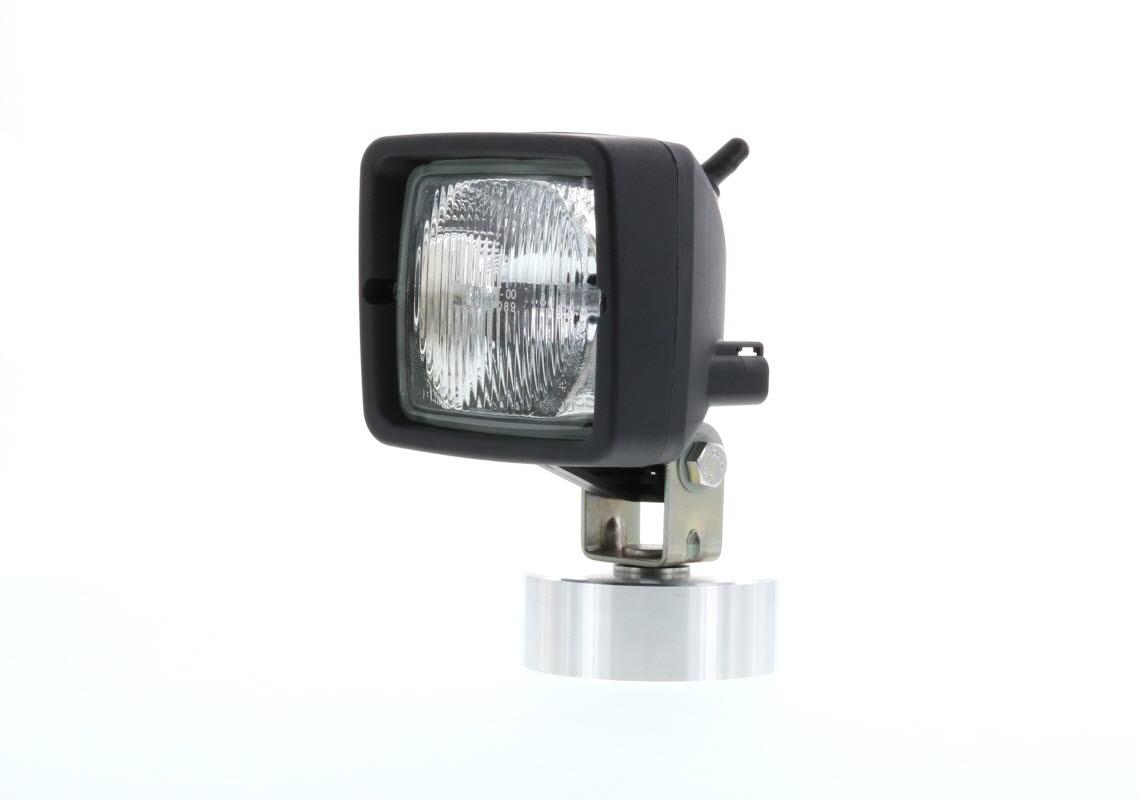

S H3 REVERSE - Service light Halogen 12V, 24V, 36V, 48V, 80V
Ref. S H3 REVERSE
- Voltage : 12V, 24V, 36V, 48V, 80V
- Source : HALOGEN
- Bulb : H3 BULB 70W max
- Amperage : 2,92 AMP at 24V (for 24V 70W bulb)
- Connector : AMP, DT
- ECE : ECE R23
Not all products are available in all markets.
Technical characteristics
| Brand | ABL | |
|---|---|---|
| Product Type | Reverse work light | |
| Voltage | 12V, 24V, 36V, 48V, 80V | |
| Source | HALOGEN | |
| Bulb | H3 BULB 70W max | |
| Amperage | 2,92 AMP at 24V (for 24V 70W bulb) | |
| Light pattern | R23 reverse approved | |
| Connector | AMP, DT | |
| Mounting | Pedestal, suspended | |
| Fixation | To be screwed | |
| Lens Material | Hardened glass | |
| Housing Material | Black fibre reinforced plastic | |
| Shape | Square | |
| Length | 104 mm | |
| Depth | 83 mm | |
| Height | 125 mm | |
| Operation Temperatures | -40°C to +85°C | |
| Salt Spray Test | ISO 9227 | |
| ECE | ECE R23 | |
| Industry | Agriculture, Construction, Forestry, Handling and Forklifts |
