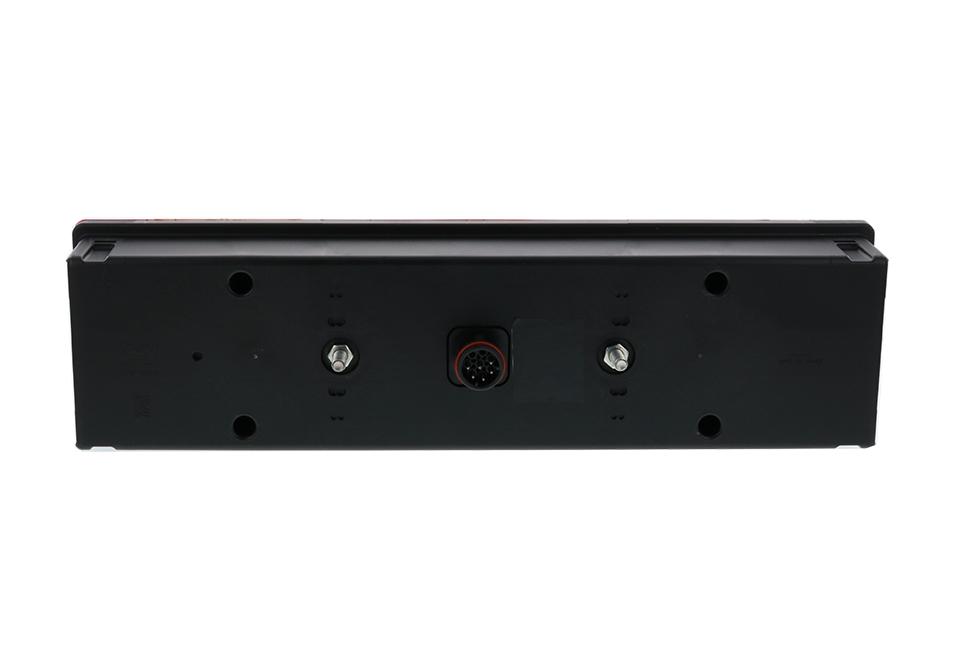

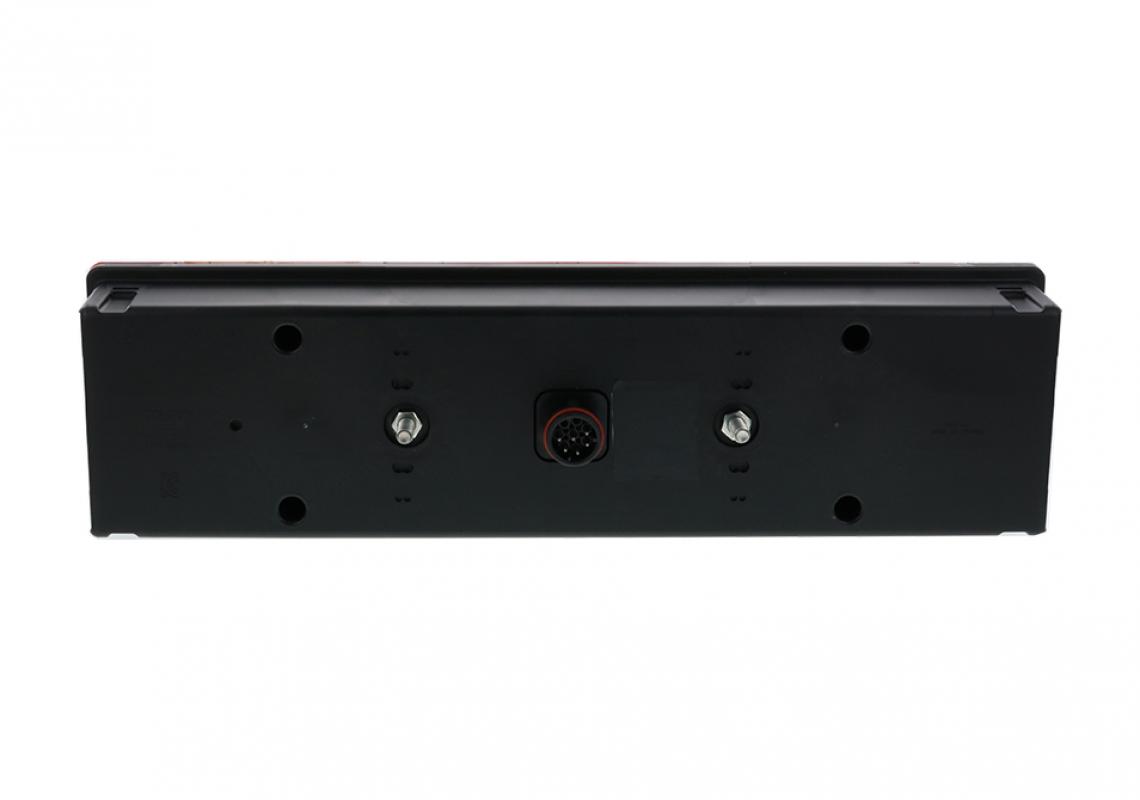

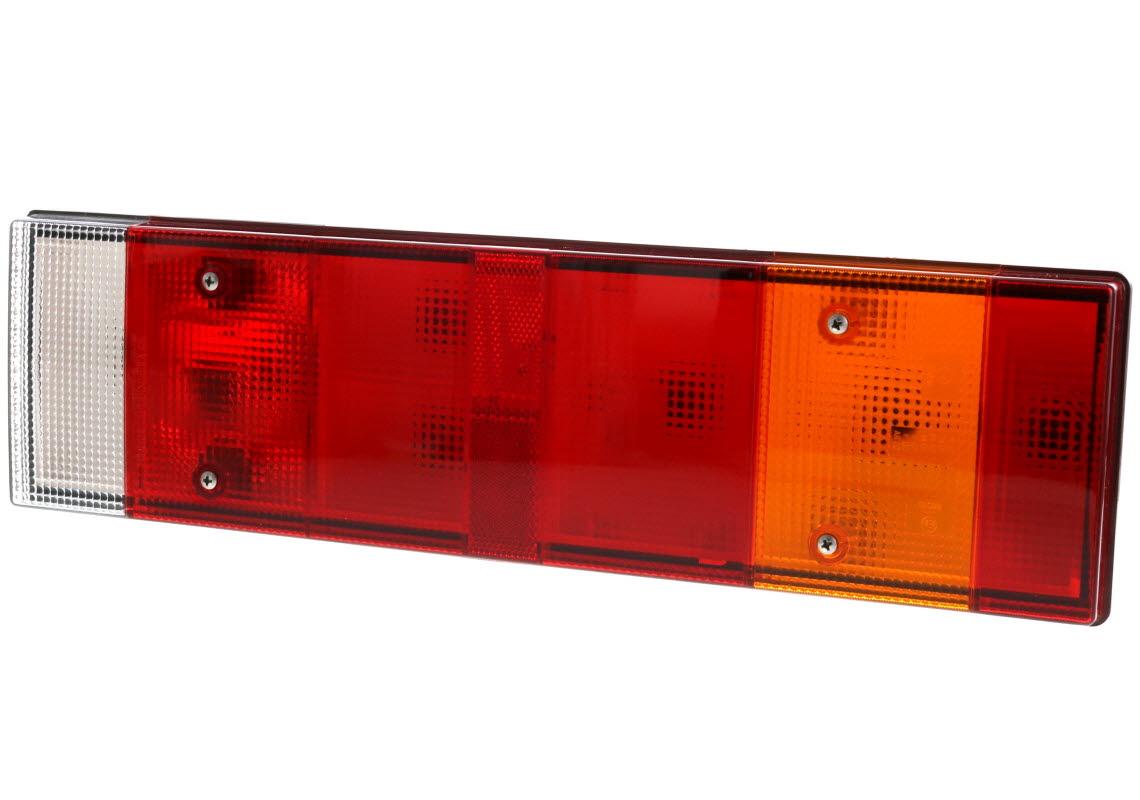

LC7 - Rear lamp Right with DAF rear connector

Ref. 167630 Show/hide other part numbers

  • Ref. LC7 K1 M 01 C
  • Ref. 1284212
Rear lamp Right with DAF rear connector
Rear lamp Right with DAF rear connector
  • Voltage : 12/24 V
  • Source : Bulbs
  • Connector : DAF rear connector
  • Side : Right
  • Fixation Bolt Distance : 152 mm
Not all products are available in all markets.

Need some advices ? Any questions ?  We call you back !

* Mandatory fields

Brand VIGNAL
Product Type Complete lamp
Voltage 12/24 V
Source Bulbs
Connector DAF rear connector
Mounting Direction Horizontal+Vertical
Side Right
Shape Rectangle
Fixation Bolt Distance 152 mm
Length 464 mm
Width 130 mm
Depth 83 mm
Main Functions Indicator, Stop, Position, Reverse, Fog
ADR ADR
ECE E2 88035
Industry Trucks

Construtor
Model
reference
Start date
End date
Construtor : DAF
Model : CF - XF tracteur
reference : 1284212
Start date : 1995
End date : 2001
Construtor : DAF
Model : CF - XF porteur
reference : 1284212
Start date : 1995
End date : 04/2012
