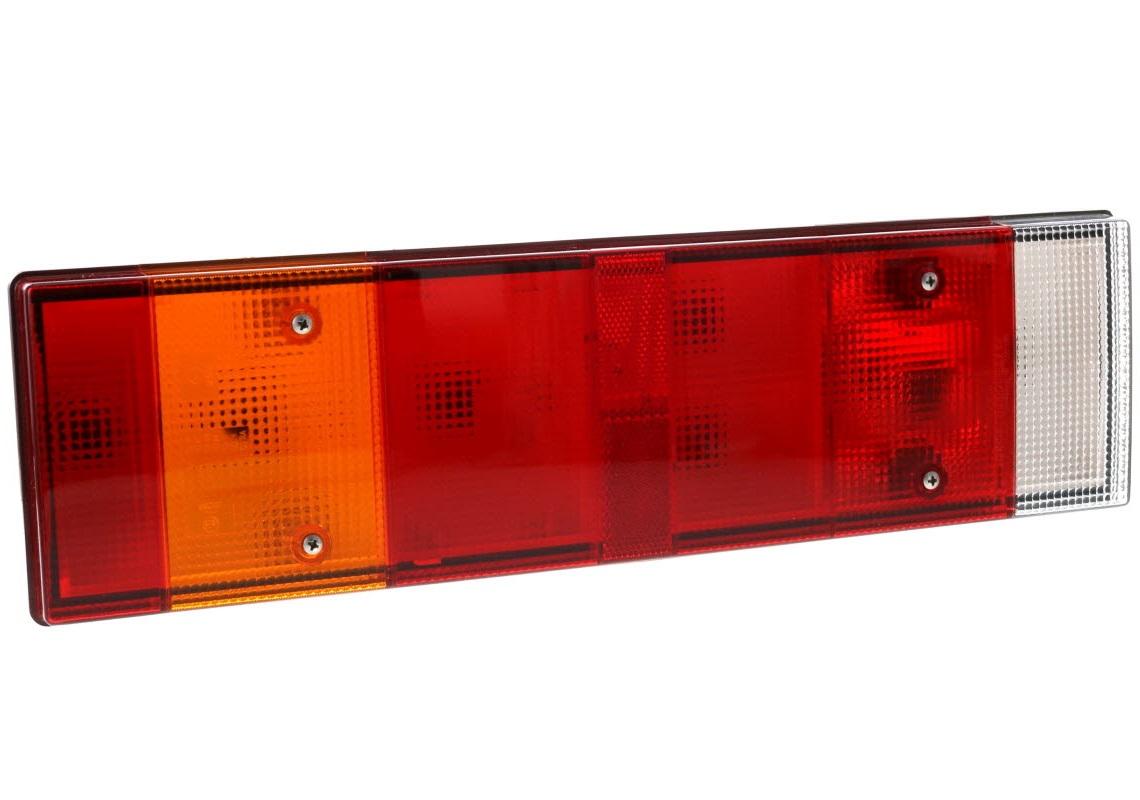

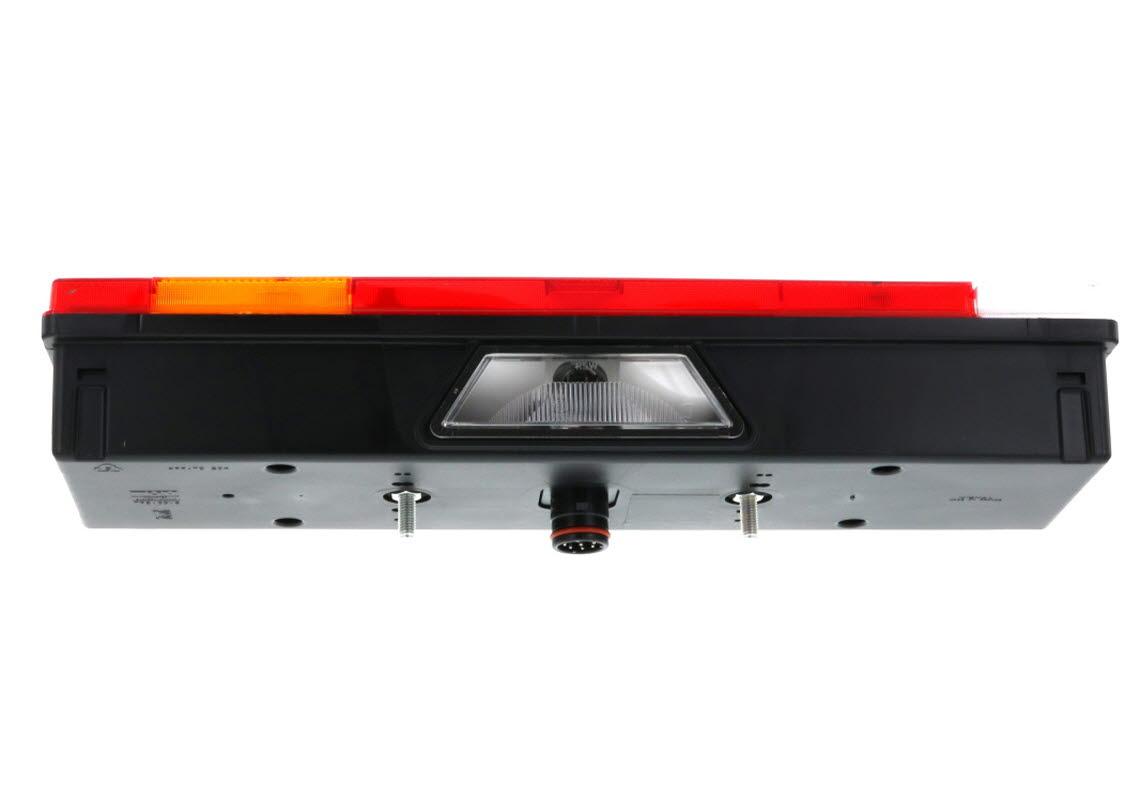

LC7 - Rear lamp Left with License plate lamp and DAF rear conn
Ref. 167640 Show/hide other part numbers
- Ref. LC7 K1 M 12 C
- Ref. 1284211
- Voltage : 12/24 V
- Source : Bulbs
- Connector : DAF rear connector
- Side : Left
- Fixation Bolt Distance : 152 mm
Not all products are available in all markets.
Technical characteristics
| Brand | VIGNAL | |
|---|---|---|
| Product Type | Complete lamp | |
| Voltage | 12/24 V | |
| Source | Bulbs | |
| Connector | DAF rear connector | |
| Mounting Direction | Horizontal | |
| Side | Left | |
| Shape | Rectangle | |
| Fixation Bolt Distance | 152 mm | |
| Length | 464 mm | |
| Width | 130 mm | |
| Depth | 83 mm | |
| Main Functions | Indicator, Stop, Position, Reverse, Fog | |
| Specific Functions | License plate lamp | |
| ADR | ADR | |
| ECE | E2 88035 | |
| Industry | Trucks |
Applications
Construtor
Model
reference
Start date
End date
Construtor :
DAF
Model :
CF - XF tracteur
reference :
1284211
Start date :
1995
End date :
2001
Construtor :
DAF
Model :
CF - XF porteur
reference :
1284211
Start date :
1995
End date :
04/2012
