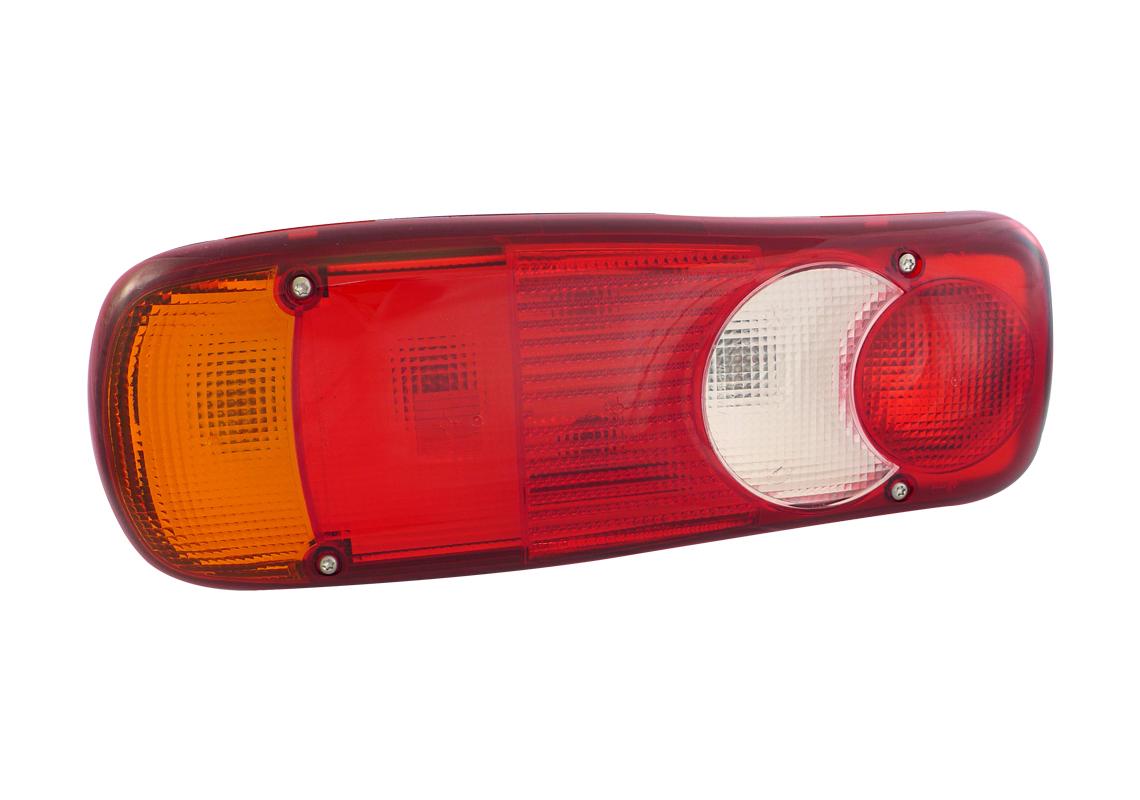

LC5 - Rear lamp Left with AMP 1.5 - 7 pin rear connector

Ref. 153880 Show/hide other part numbers

  • Ref. LC5 KD 11S
  • Ref. 261319Z01D
Rear lamp Left with AMP 1.5 - 7 pin rear connector
Rear lamp Left with AMP 1.5 - 7 pin rear connector
Rear lamp Left with AMP 1.5 - 7 pin rear connector
  • Voltage : 12/24 V
  • Source : Bulbs
  • Connector : AMP 1.5 - 7 pin rear connector
  • Side : Left
  • Fixation Bolt Distance : 152 mm
Not all products are available in all markets.

Need some advices ? Any questions ?  We call you back !

* Mandatory fields
Technical characteristics Applications Accessories Similar products

Brand VIGNAL
Product Type Complete lamp
Manufacturer UD Trucks
Voltage 12/24 V
Source Bulbs
Connector AMP 1.5 - 7 pin rear connector
Mounting Direction Horizontal+Vertical
Side Left
Shape Rectangle

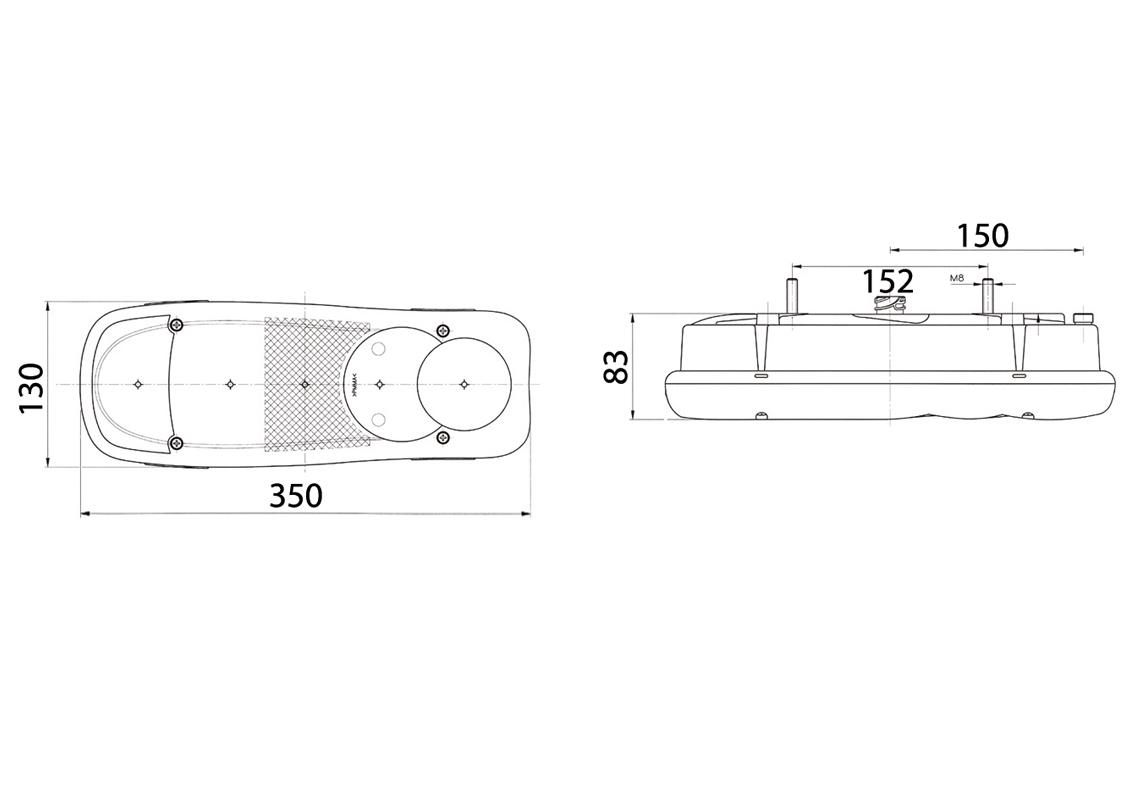

Fixation Bolt Distance 152 mm
Length 350 mm
Width 130 mm
Depth 83 mm
Main Functions Indicator, Stop, Position, Reverse, Rear reflector
ADR ADR
ECE E2 8005
CCC CCC
Industry Trucks

Construtor
Model
reference
Start date
End date
Construtor : UD TRUCKS
Model : QUON - CONDOR
reference : 261319Z01D
Start date : 05/2015
End date :
