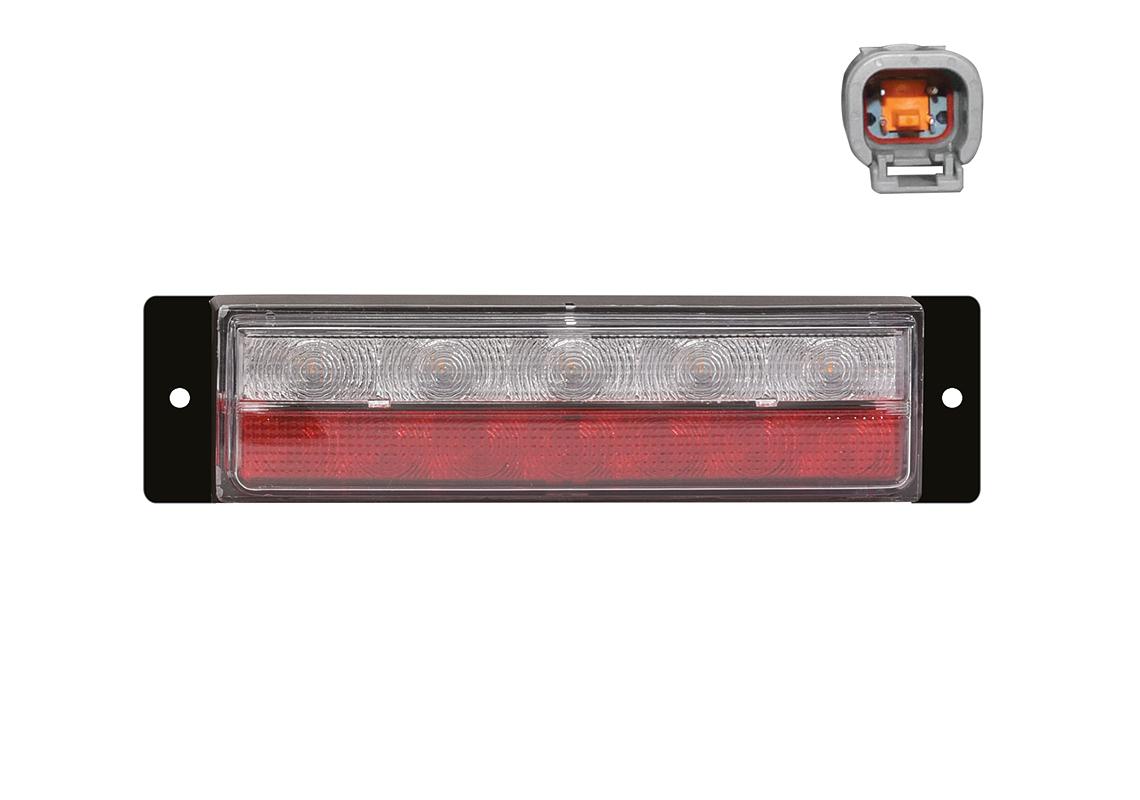

CTL15 LED - Rear lamp LED Left/Right with DTM04-4P connector
Ref. 164050 Show/hide other part numbers
- Ref. CTL15 D DTM
- Ref. 661058
- Connector : DT 4 pin mini - DTM04-4P
Not all products are available in all markets.
Technical characteristics
| Brand | VIGNAL | |
|---|---|---|
| Product Type | Complete lamp | |
| Manufacturer | LeCapitaine | |
| Voltage | 24V | |
| Source | LED | |
| Connector | DT 4 pin mini - DTM04-4P | |
| Side | Left/Right | |
| Cable Length | 420 mm | |
| Shape | Rectangle | |
| Fixation Bolt Distance | 174 mm | |
| Length | 191 mm | |
| Depth | 29 mm | |
| Main Functions | Indicator, Stop, Position | |
| IP protection | IP6K9K | |
| ECE | E2 16005, ECE | |
| Industry | Agriculture, Trailers and Semi-trailers |
Applications
Construtor
Model
reference
Start date
End date
Construtor :
LECAPITAINE
Model :
TRAILERS
reference :
661058
Start date :
End date :
