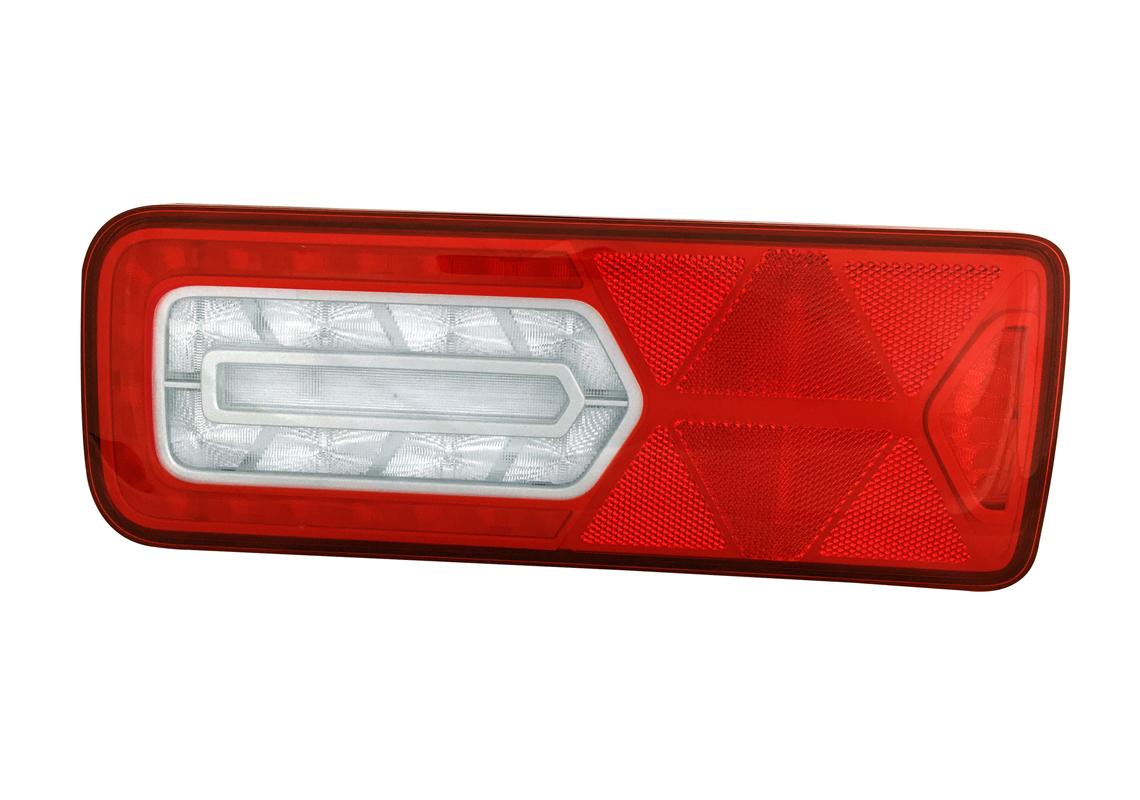

Rear lamp LED Left 24V, Reflector

Rear lamp LED Left 24V, Reflector

Rear lamp LED Left 24V, Reflector

LC12 LED - Rear lamp LED Left 24V, Reflector

Ref. 161120 Show/hide other part numbers

Ref. LC12 LED K02L

Rear lamp LED Left 24V, Reflector

Rear lamp LED Left 24V, Reflector

Rear lamp LED Left 24V, Reflector

Rear lamp LED Left 24V, Reflector

Rear lamp LED Left 24V, Reflector

Compact and ultra slim, it presents options which make it simplier to fit on the vehicle : an integrated resistance to control the indicator failure as well as a dynamic indicator lamp. Read more

Voltage : 24V
Source : LED

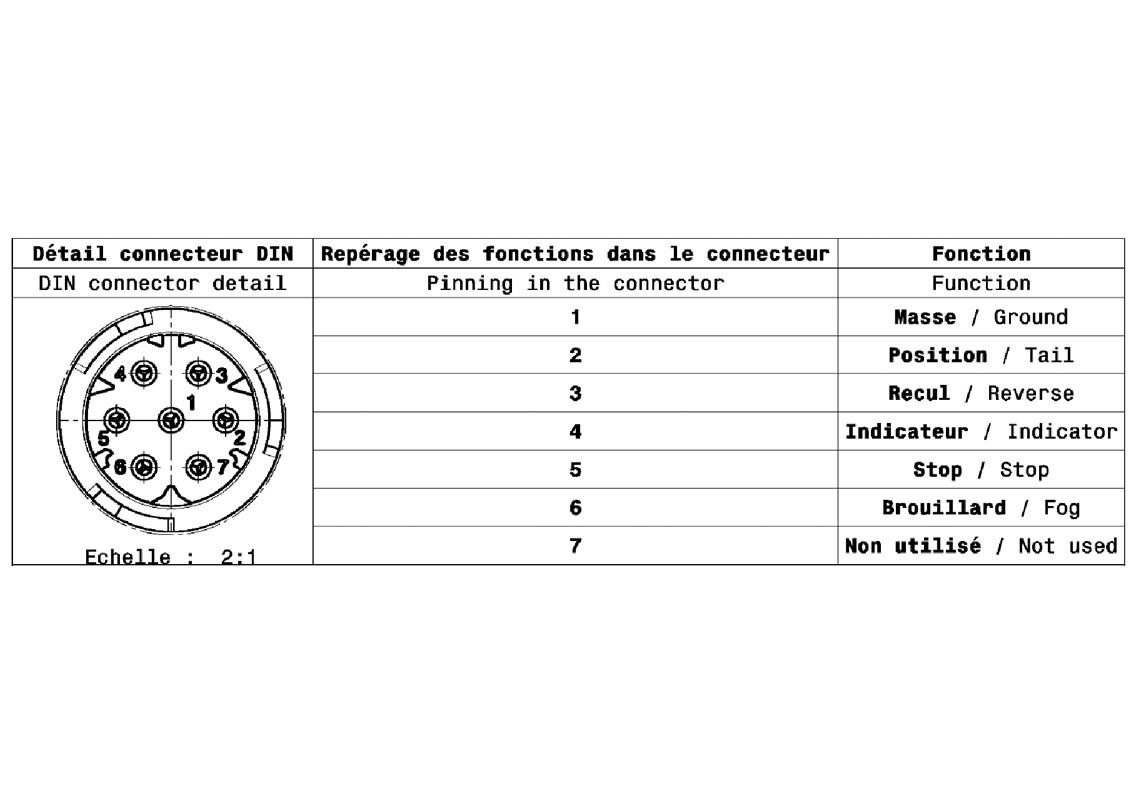

Connector : AMP 1.5 - 7 pin rear connector
Side : Left
Fixation Bolt Distance : 152 mm

Homologation certificate

Not all products are available in all markets.

Need some advices ? Any questions ? We call you back !

Name *

Email *

Telephone *

Zip code *

Country *

* Mandatory fields

All data provided to us is only used by our services, as part of your call request and any commercial relationship that may result (learn more).

Technical characteristics Accessories Similar products

Technical characteristics

Brand		VIGNAL
Product Type		Complete lamp
Voltage		24V
Source		LED
Connector		AMP 1.5 - 7 pin rear connector
Mounting Direction		Horizontal
Side		Left
Lens Material		Polycarbonate
Shape		Rectangle
Fixation Bolt Distance		152 mm
Length		350 mm
Width		130 mm
Depth		40 mm
Main Functions		Dynamic indicator, Stop, Position, Reverse, Fog, Reflector
IP protection		IP69K
EMC		E2 10R-0516057
ADR		ADR
ECE		E2 16027, ECE
Industry		Trucks
