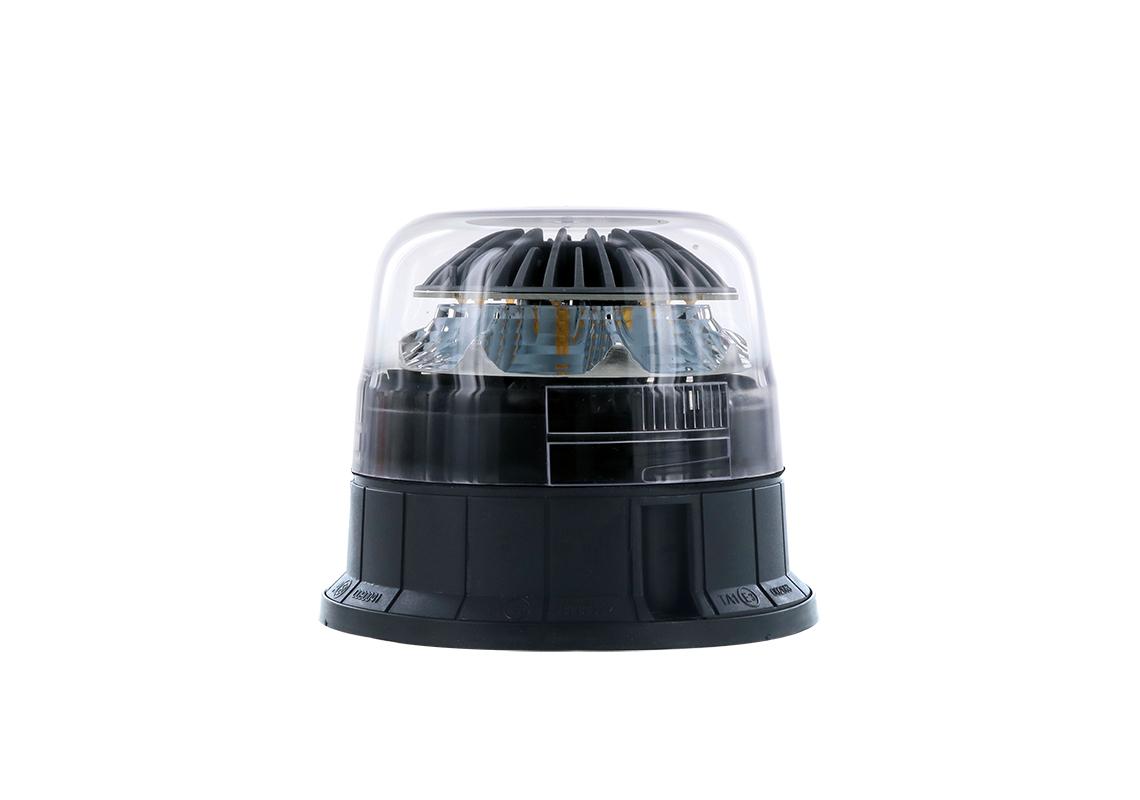

GALAXY LED - LED Beacon to be screwed, flash light crystal lens, amber LED
Ref. D14752 Show/hide other part numbers
- Ref. 21.49.L35.11V
LED Beacon to be screwed flash
Read more
- Voltage : 10 - 30V
- Source : LED
- Consumption : 9W
- Color : Crystal lens, Amber LED
- Fixation : 3 screws 3.5 x 15.9 mm
- Flash Patterns : Simple Flash
- Flash per Minute : 125
Not all products are available in all markets.
Technical characteristics
| Brand | CEA | |
|---|---|---|
| Product Type | Complete lamp | |
| Voltage | 10 - 30V | |
| Source | LED | |
| Consumption | 9W | |
| Color | Crystal lens, Amber LED | |
| Connector | ISO DIN 14620B | |

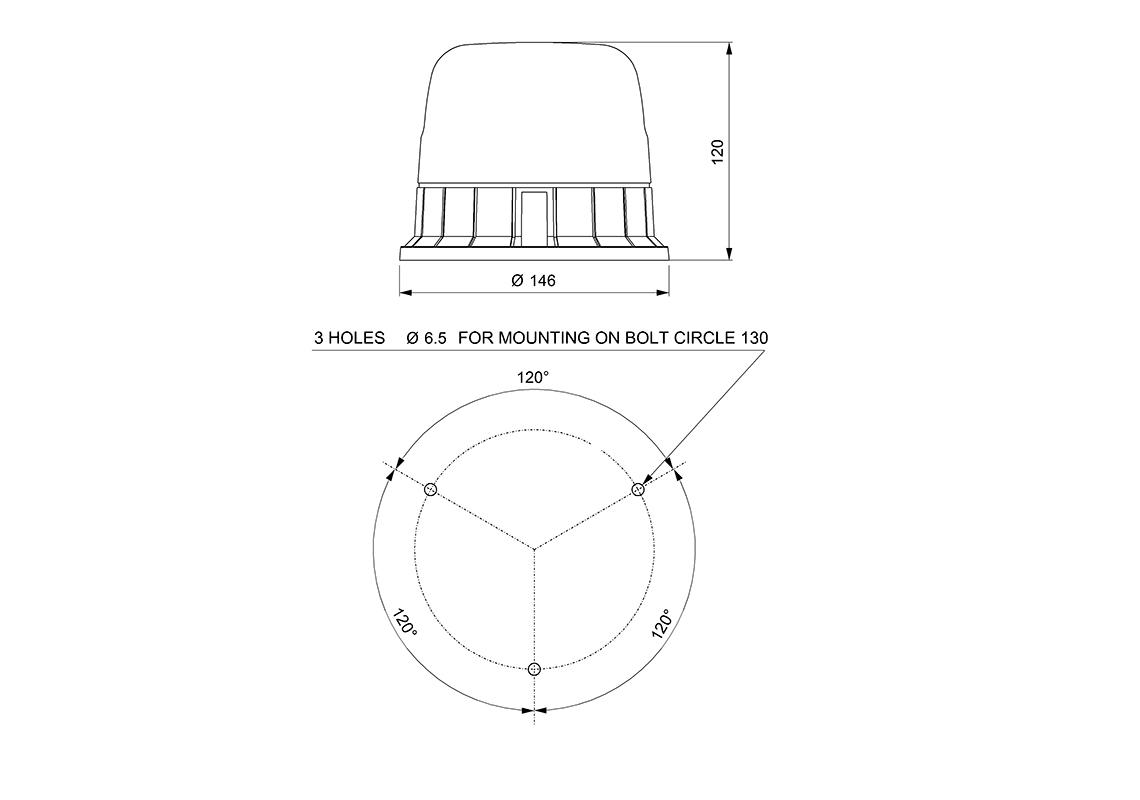

| Fixation | 3 screws 3.5 x 15.9 mm | |
| Lens Material | Polycarbonate | |
| Housing Material | Compound thermoplastic | |
| Diameter | 146 mm | |
| Height | 120 mm | |
| Weight | 0,43 Kg | |
| Flash Patterns | Simple Flash | |
| Flash per Minute | 125 | |
| Operation Temperatures | -30°C to +50°C | |
| EMC | ECE R10 | |
| ECE | ECE R65 | |
| SAE | SAE J85 Claas I | |
| Industry | Agriculture, Construction, Forestry, Handling and Forklifts, Priority vehicle, Trailers and Semi-trailers, Trucks, Vans and Chassis cab |
