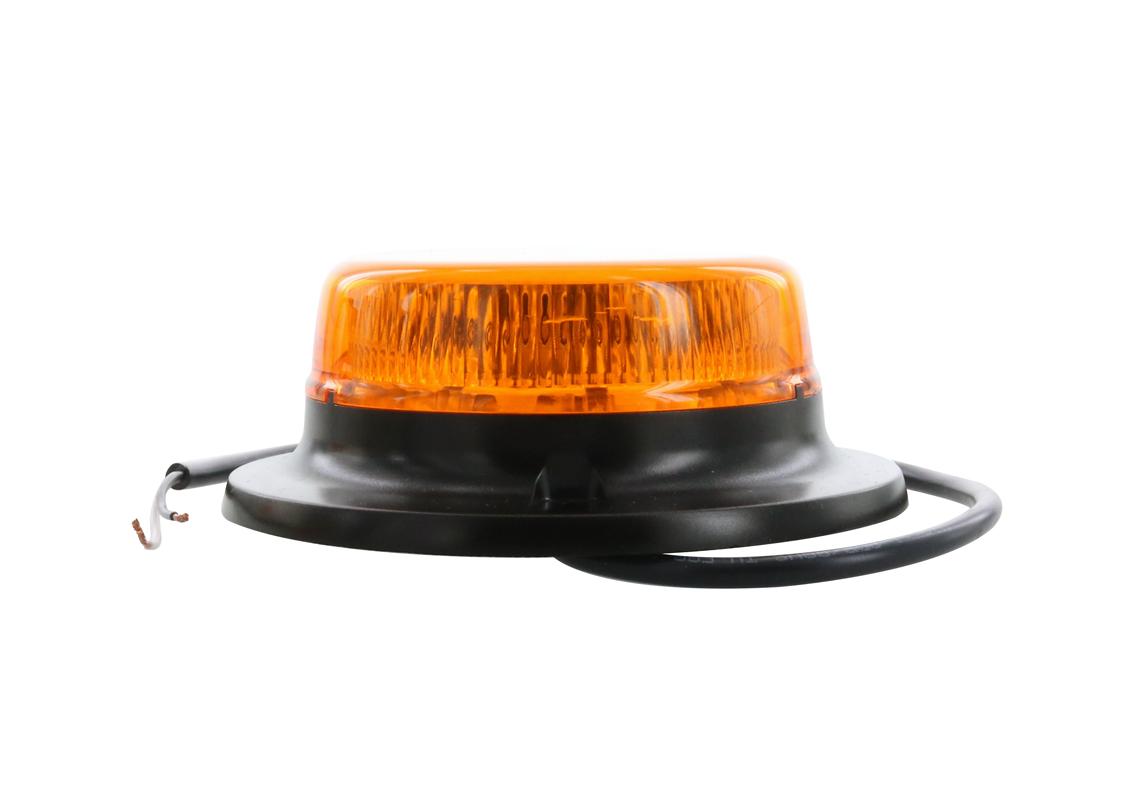

ATLASSINO - ATLASSINO LED BEACON 3 SCREWS MOUNTING FLASH LIGHT AMBER CENTRAL CABLE OUTPUT
Ref. 221100
Introducing our new compact and cost effective beacon ATLASSINO :
120 mm diameter - adapts to all vehicles
smart design : less components for less consumption
TIR molded optics
Heavy duty - longlife beacon
Central cable output
Read more
- Connector : Naked cable extremity
- Lens Material : Polycarbonate
- Diameter : 120 mm
- Flash Patterns : Double Flash
Not all products are available in all markets.
Technical characteristics
| Brand | VIGNAL | |
|---|---|---|
| Product Type | Complete lamp | |
| Voltage | 10-30 VDC | |
| Consumption | 16W, 7W | |
| Color | Amber / Orange, Other colors on request | |
| Connector | Naked cable extremity | |
| Fixation | 3 screws | |
| Lens Material | Polycarbonate | |
| Diameter | 120 mm | |
| Height | 44,5 mm | |
| Weight | 0,175 Kg | |
| Flash Patterns | Double Flash | |
| IP protection | IP6K9K (ISO 20653) | |
| Polarity | Protected against reverse voltage | |
| Operation Temperatures | -40°C to +80°C | |
| EMC | CISPR25 Class 5, ECE R10 | |
| ECE | ECE R65 (TA1 or TB1) | |
| SAE | SAE | |
| Industry | Agriculture, Ambulance, Construction, Electric vehicles, Gendarmerie (French police), Police, Priority vehicle, Vans and Chassis cab |
