S H3 - Work light Halogen 12V, 24V, 36V, 48V, 80V
Ref. SH3RANGE_FL Show/hide other part numbers
- Ref. D14156
- Ref. D12488
- Voltage : 12V, 24V, 36V, 48V, 80V
- Source : HALOGEN
- Bulb : H3 BULB 70W max
- Amperage : 2,92 AMP at 24V
- Connector : AMP, DT, grommet, wire compression seal, cable compression seal PG7/PG9
Not all products are available in all markets.
Technical characteristics
| Brand | ABL | |
|---|---|---|
| Product Type | Work light | |
| Voltage | 12V, 24V, 36V, 48V, 80V | |
| Source | HALOGEN | |
| Bulb | H3 BULB 70W max | |
| Amperage | 2,92 AMP at 24V | |
| Light pattern | Flood | |
| Color | Amber, red, blue, crystal | |
| Connector | AMP, DT, grommet, wire compression seal, cable compression seal PG7/PG9 | |
| Mounting | Pedestal, suspended, side mount, flush mount | |
| Lens Material | Hardened glass | |
| Housing Material | Black fibre reinforced plastic | |
| Shape | Square | |

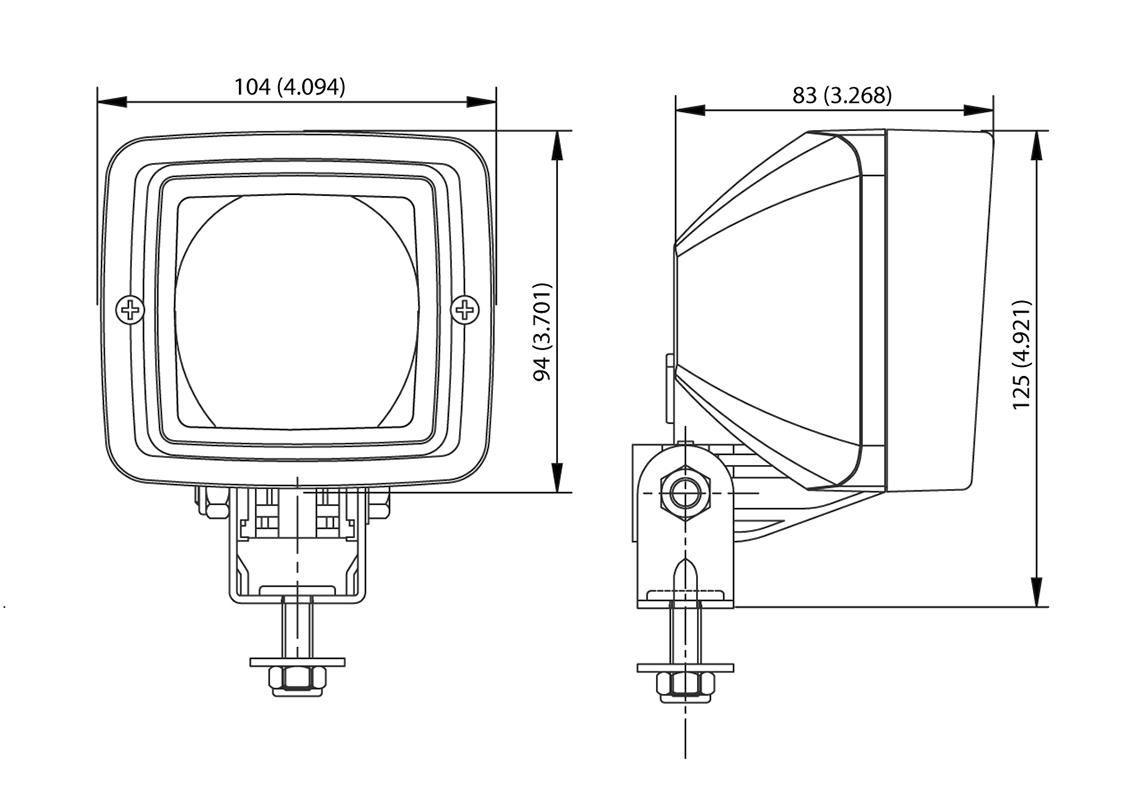

| Length | 104 mm | |
| Depth | 83 mm | |
| Height | 94 mm | |
| IP protection | IP54 (grommet) - IP66 - IP69K (connectors) | |
| Operation Temperatures | -40°C to +85°C | |
| Salt Spray Test | ISO 9227 | |
| Industry | Agriculture, Buses and Coaches, Construction, Forestry, Handling and Forklifts, Priority vehicle, Trailers and Semi-trailers, Trucks, Vans and Chassis cab |
Applications
Construtor
Model
reference
Start date
End date
Construtor :
STEYR
Model :
TRACTOR
reference :
48159167
Start date :
End date :
