Side marker lamp LED 24V amber Renault Trucks, Volvo Trucks

Side marker lamp LED 24V amber Renault Trucks, Volvo Trucks

Side marker lamp LED 24V amber Renault Trucks, Volvo Trucks

SMD00 LED - Side marker lamp LED 24V amber Renault Trucks, Volvo Trucks

Ref. 198620 Show/hide other part numbers

Ref. SMD 00 DKR
Ref. 82392733
Ref. 7482392733
Ref. 23387844

Side marker lamp LED 24V amber Renault Trucks, Volvo Trucks

Side marker lamp LED 24V amber Renault Trucks, Volvo Trucks

Side marker lamp LED 24V amber Renault Trucks, Volvo Trucks

Side marker lamp LED 24V amber Renault Trucks, Volvo Trucks

Standard side marker lamp SMD00, white housing, PMMA lens. Read more

Voltage : 24V
Source : LED
Color : Amber / Orange
Connector : AMP MCP 2.8 2 pin
Mounting Direction : Horizontal+Vertical

Homologation certificate

Not all products are available in all markets.

Need some advices ? Any questions ? We call you back !

Name *

Email *

Telephone *

Zip code *

Country *

* Mandatory fields

All data provided to us is only used by our services, as part of your call request and any commercial relationship that may result (learn more).

Technical characteristics Applications Accessories Similar products

Technical characteristics

Brand		VIGNAL
Product Type		Complete lamp
Manufacturer		Renault Trucks, Volvo Trucks
Voltage		24V
Source		LED
Color		Amber / Orange
Connector		AMP MCP 2.8 2 pin
Mounting Direction		Horizontal+Vertical
Lens Material		PMMA
Shape		Rectangle

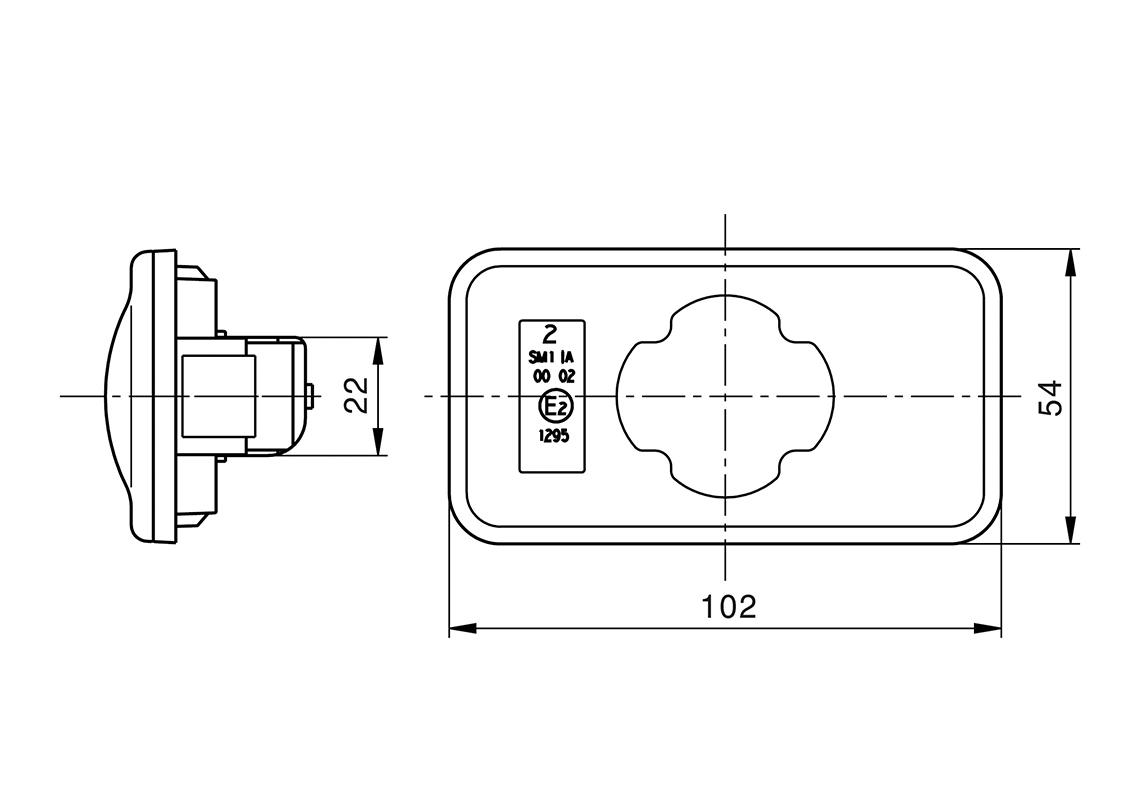

Length		102 mm
Width		54 mm
Main Functions		Side position
Specific Functions		Reflector
ADR		ADR
ECE		E2 1295, ECE
CCC		CCC
Industry		Agriculture, Construction, Forestry, Handling and Forklifts, Mining, Trailers and Semi-trailers, Trucks, Vans and Chassis cab

Applications

Construtor

Model

reference

Start date

End date

Construtor : RENAULT TRUCKS

Model : EURO 6 - T/ K /C --> 520 CH

reference : 7482392733

Start date : 11/2013

End date :

Construtor : VOLVO

Model : FL-FM-FH

reference : 82392733

Start date : 2001

End date :

Construtor : MAISONNEUVE

Model : MAISONNEUVE

reference :

Start date :

End date :

Construtor : VOLVO

Model : FL-FM-FH

reference : 23387844

Start date : 01/10/2018 13:52

End date :
