Accessories wired systems - Shutter Camera HD 1080P
Ref. D16132 Show/hide other part numbers
- Ref. 69CAM160
The D16132 camera has a 122° viewing angle and is waterproof to IP69K. It operates on 12/24 V.
It can be integrated into a retrovision kit such as the D16131. It can be fitted to coaches, buses, lorries and special vehicles.
Read more
- Voltage : 12/24 V
- Resolution : 1920 x 1080 pixels
- Vision Angle : 120°
Not all products are available in all markets.
Technical characteristics
| Mirror mode | Mirror mode | |
|---|---|---|
| Product Type | Camera | |
| Voltage | 12/24 V | |
| Consumption | Screen powered | |
| Color | Yes | |

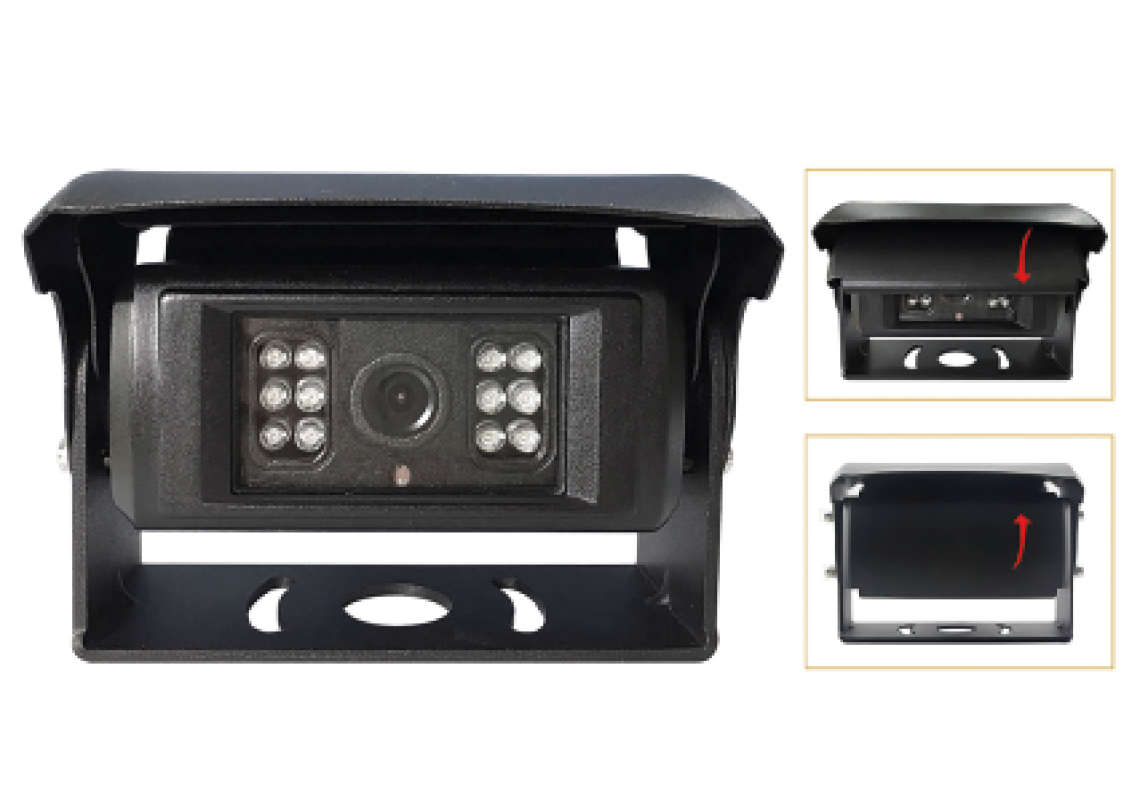

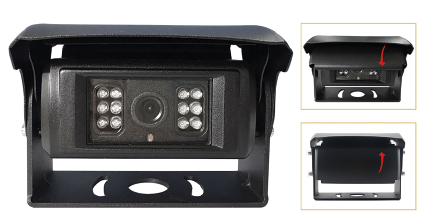

| Specific Functions | motorised cover | |
| Resolution | 1920 x 1080 pixels | |
| Camera Dimensions | 125 mm (L) x 86 (W) x 80 mm (D) | |
| Vision Angle | 120° | |
| Audio | Micro | |
| Night/Day sensor | Yes | |
| Infrared LED Number | 12 LEDs | |
| IP protection | IP69K | |
| Operation Temperatures | -20°C to +70°C | |
| Industry | Agriculture, Buses and Coaches, Construction, Trailers and Semi-trailers, Trucks, Vans and Chassis cab |
