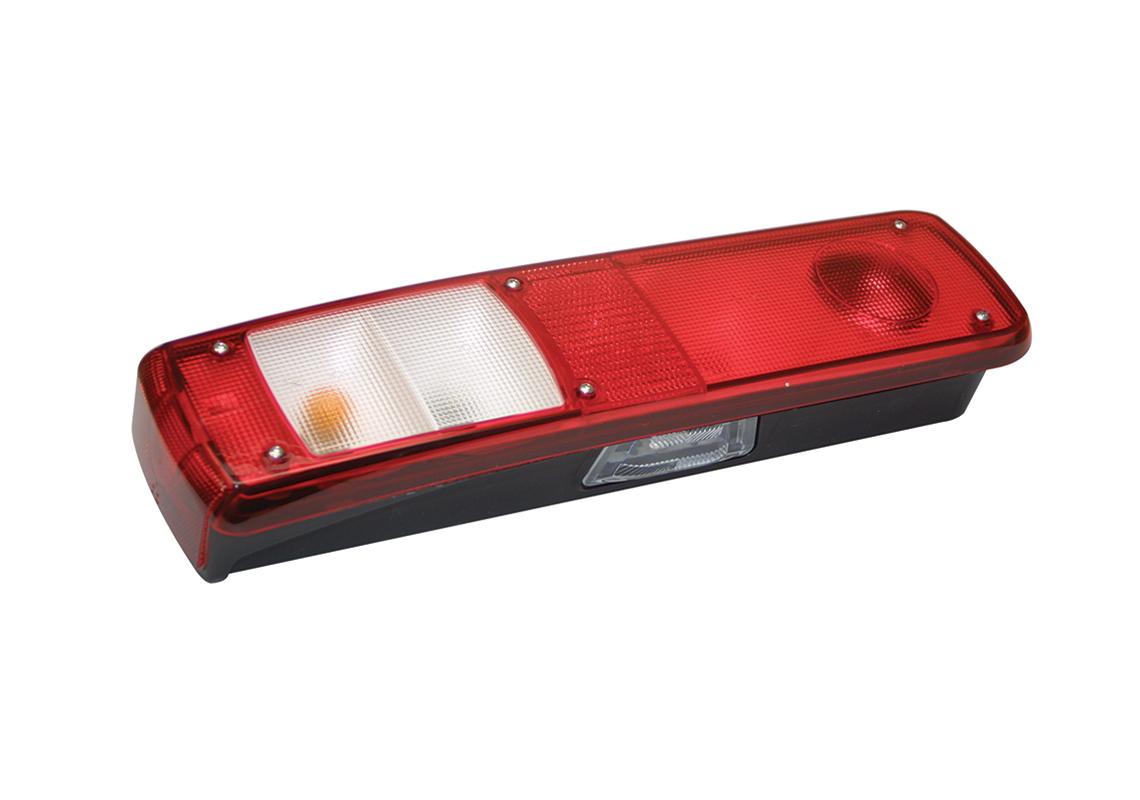

LC9 - RENAULT TRUCKS or VOLVO TRUCKS Rear lamp Left
Ref. 159010 Show/hide other part numbers
- Ref. LC9 K 12 C
- Ref. 20769775
- Ref. 7420802348
- Voltage : 12/24 V
- Source : Bulbs

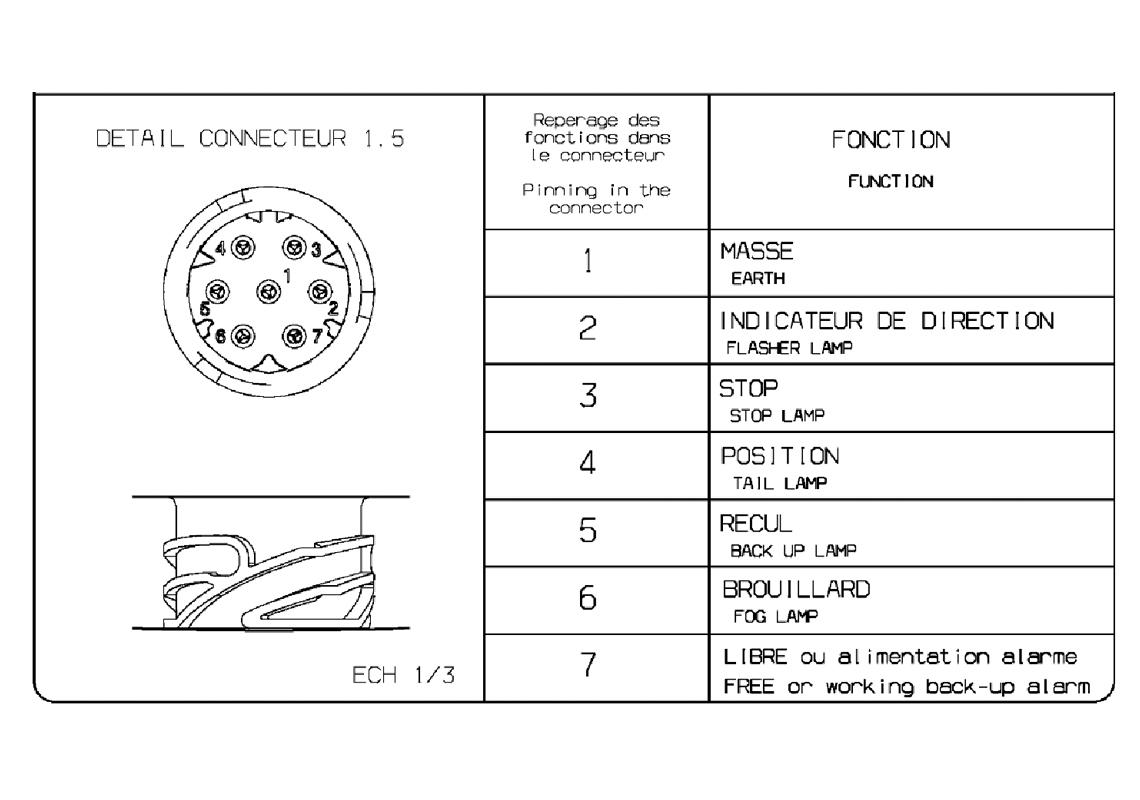

- Connector : AMP 1.5 - 7 pin side connector
- Side : Left
- Fixation Bolt Distance : 160 mm
Not all products are available in all markets.
Technical characteristics
| Brand | VIGNAL | |
|---|---|---|
| Product Type | Complete lamp | |
| Manufacturer | Renault Trucks, Volvo Trucks | |
| Voltage | 12/24 V | |
| Source | Bulbs | |
| Connector | AMP 1.5 - 7 pin side connector | |
| Mounting Direction | Horizontal | |
| Side | Left | |
| Shape | Rectangle | |

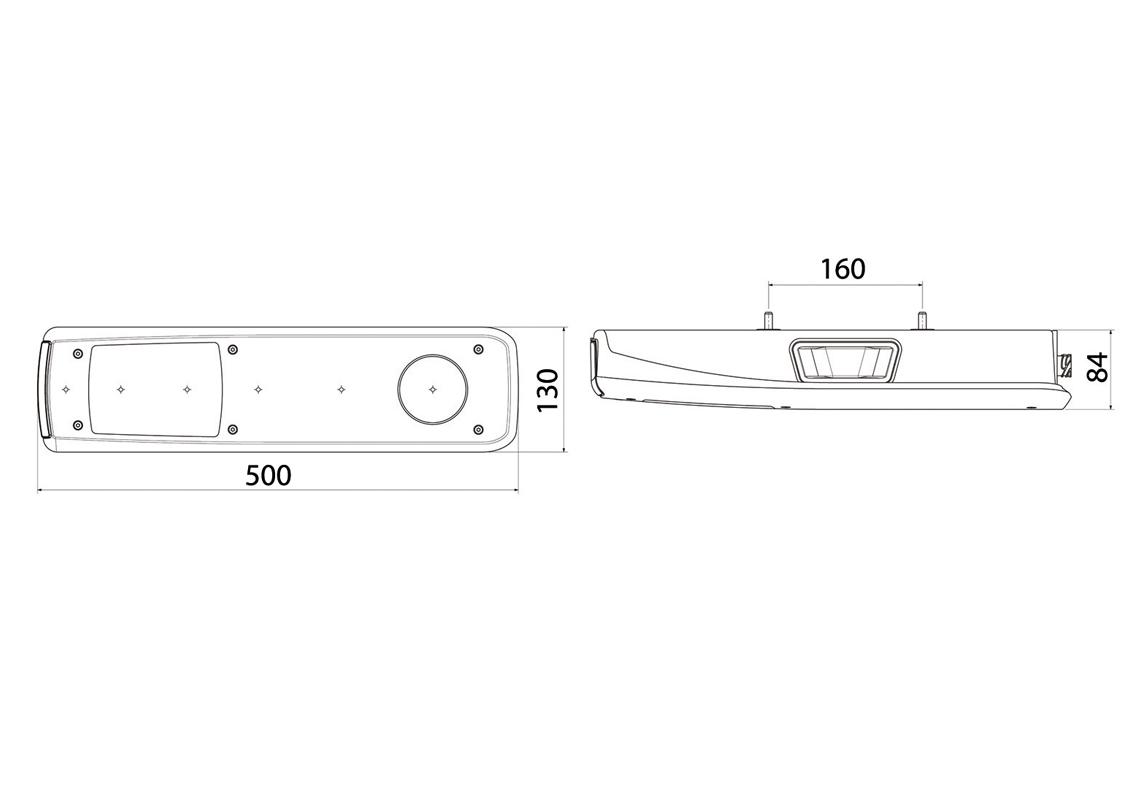

| Fixation Bolt Distance | 160 mm | |
| Length | 500 mm | |
| Width | 130 mm | |
| Depth | 84 mm | |
| Main Functions | Indicator, Stop, Position, Reverse, Fog, Rear reflector, End-outline marker lamp, Side position, Side reflector | |
| Specific Functions | License plate lamp | |
| ADR | ADR | |
| ECE | E2 04075, ECE | |
| Industry | Trucks |
Applications
Construtor
Model
reference
Start date
End date
Construtor :
RENAULT TRUCKS
Model :
EURO 6 - T / K / C / D
reference :
7420802348
Start date :
11/2013
End date :
Construtor :
RENAULT TRUCKS
Model :
MAGNUM
reference :
7420802348
Start date :
01/2006
End date :
Construtor :
RENAULT TRUCKS
Model :
EURO 6 - C > 320 CH
reference :
7420802348
Start date :
01/2006
End date :
Construtor :
VOLVO
Model :
FE
reference :
20769775
Start date :
2006
End date :
