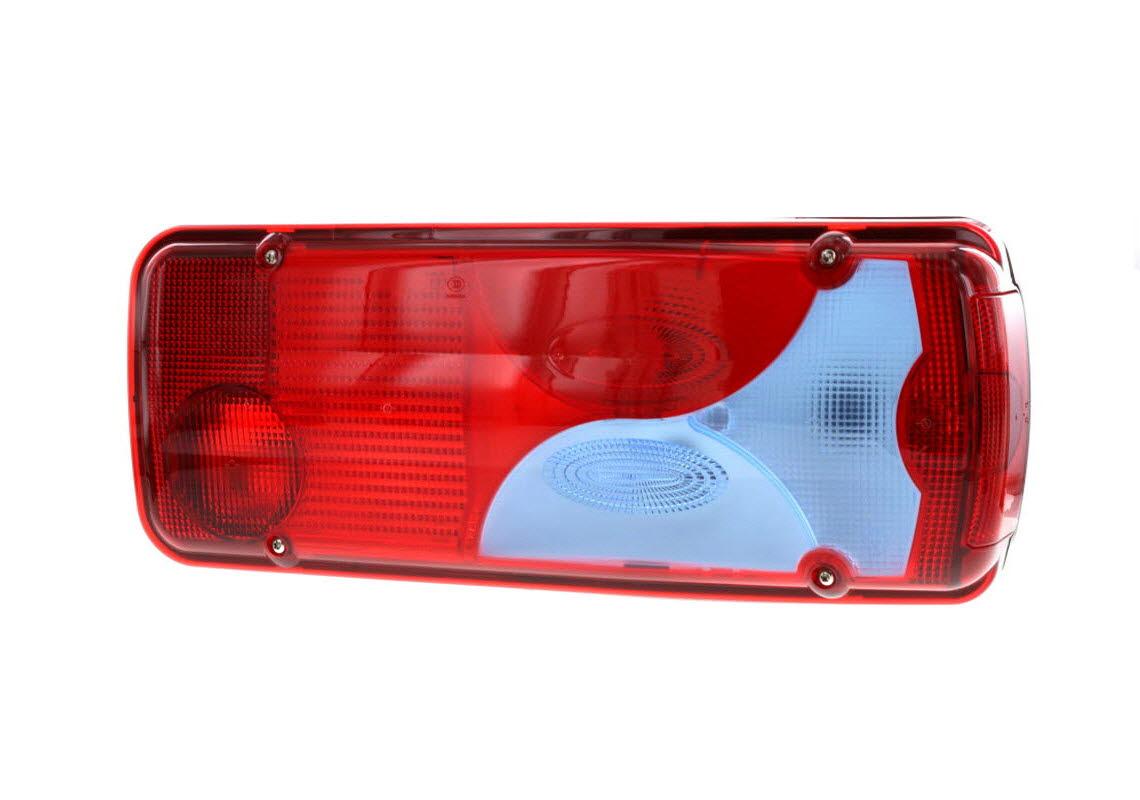

LC8 - Rear lamp Right with AMP 1.5 - 7 pin rear connector
Ref. 155560 Show/hide other part numbers
- Ref. LC8 KE 21G IAM
- Ref. 65252256005
- Ref. 7CE945096
- Manufacturer : Man
- Voltage : 12/24 V
- Source : Bulbs

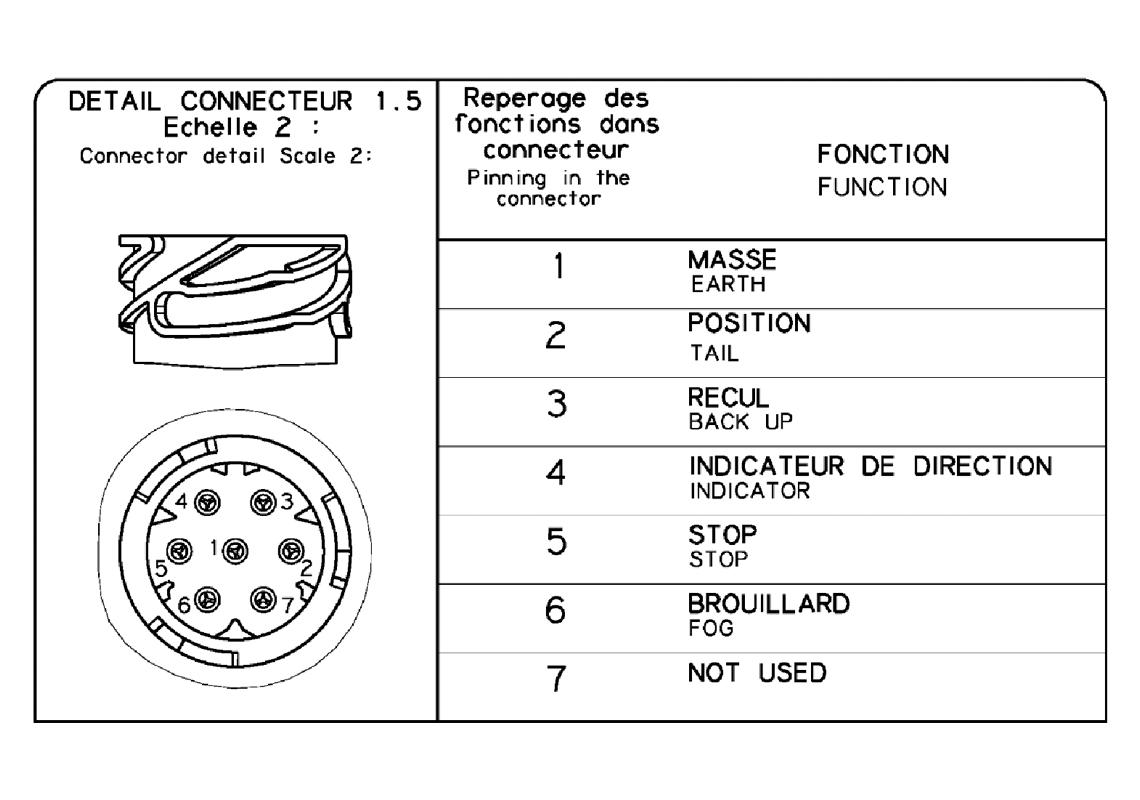

- Connector : AMP 1.5 - 7 pin rear connector
- Side : Right
- Fixation Bolt Distance : 152 mm
Not all products are available in all markets.
Technical characteristics
| Brand | VIGNAL | |
|---|---|---|
| Product Type | Complete lamp | |
| Manufacturer | Man | |
| Voltage | 12/24 V | |
| Source | Bulbs | |
| Connector | AMP 1.5 - 7 pin rear connector | |
| Mounting Direction | Horizontal | |
| Side | Right | |
| Shape | Rectangle | |
| Fixation Bolt Distance | 152 mm | |
| Length | 400 mm | |
| Width | 160 mm | |
| Main Functions | Indicator, Stop, Position, Reverse, Fog, Rear reflector, End-outline marker lamp, Side position, Side reflector | |
| ADR | ADR | |
| ECE | E2 2040, ECE | |
| CCC | CCC | |
| Industry | Vans and Chassis cab |
Applications
Construtor
Model
reference
Start date
End date
Construtor :
MAN
Model :
TGE
reference :
7CE945096
Start date :
04/2017
End date :
Construtor :
MAN
Model :
TGE
reference :
65252256005
Start date :
04/2017
End date :
