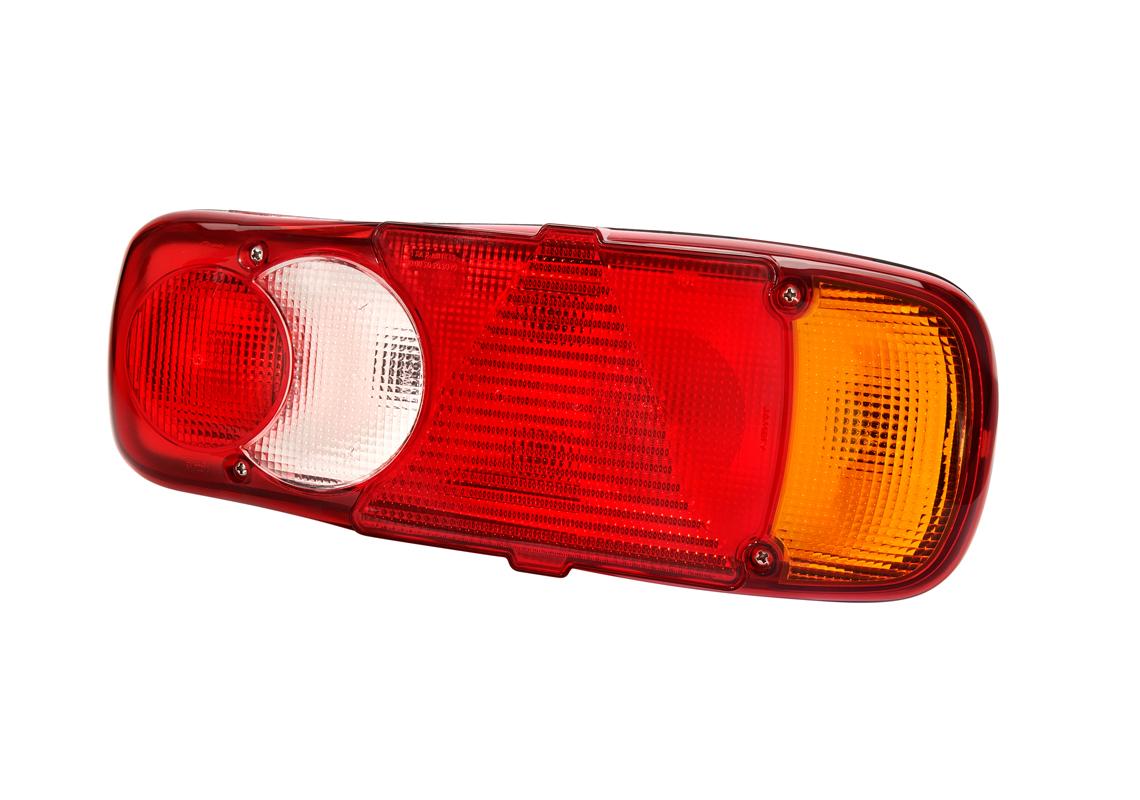

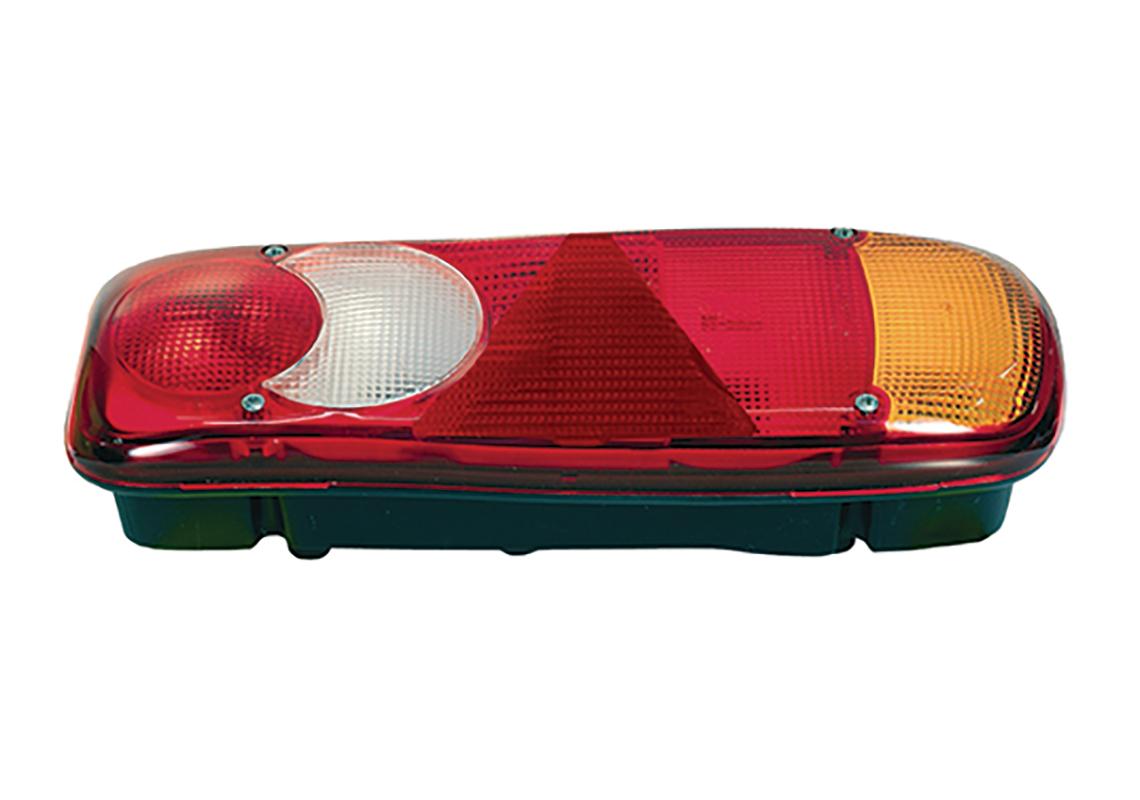

LC5T - Rear lamp Right with AMP 1.5 - 7 pin rear connector
Ref. 153010 Show/hide other part numbers
- Ref. LC5 TD 21 C
- Voltage : 12/24 V
- Source : Bulbs

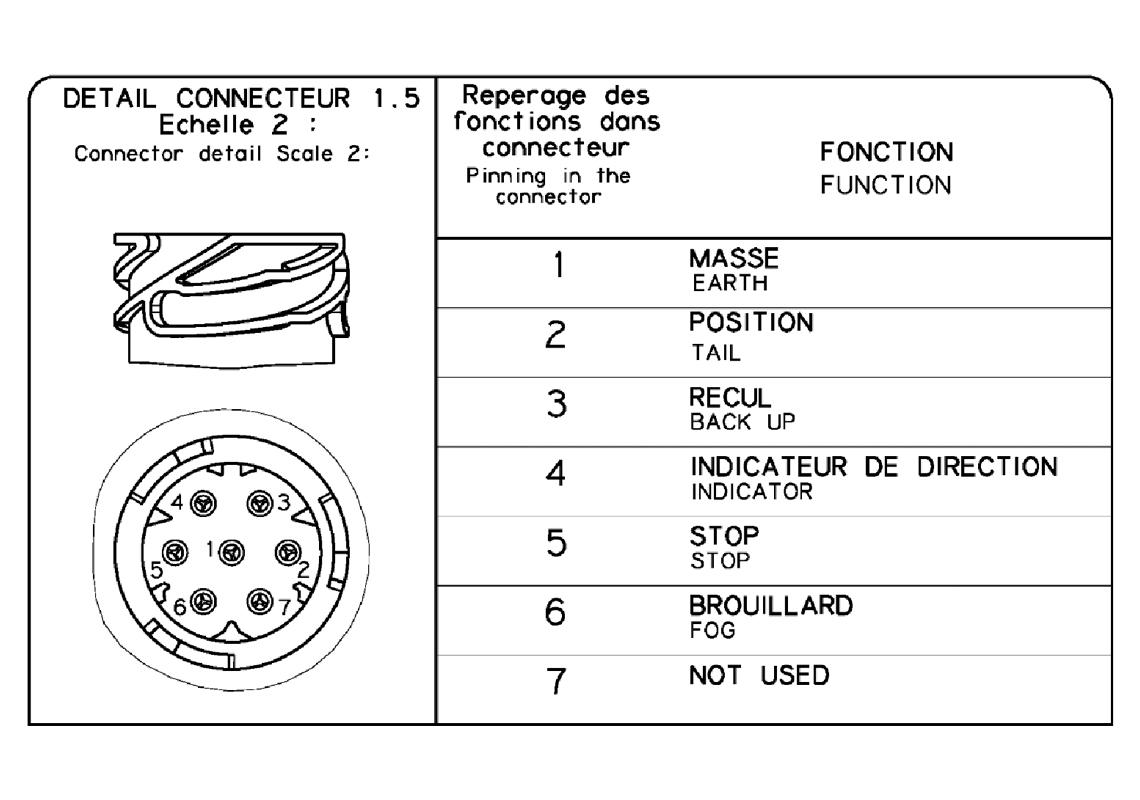

- Connector : AMP 1.5 - 7 pin rear connector
- Side : Right
- Fixation Bolt Distance : 152 mm
Not all products are available in all markets.
Technical characteristics
| Brand | VIGNAL | |
|---|---|---|
| Product Type | Complete lamp | |
| Voltage | 12/24 V | |
| Source | Bulbs | |
| Connector | AMP 1.5 - 7 pin rear connector | |
| Mounting Direction | Horizontal | |
| Side | Right | |
| Shape | Rectangle | |
| Fixation Bolt Distance | 152 mm | |
| Length | 350 mm | |
| Width | 130 mm | |
| Depth | 83 mm | |
| Main Functions | Indicator, Stop, Position, Reverse, Fog, Triangular reflector | |
| ADR | ADR | |
| ECE | E2 06024, ECE | |
| Industry | Trailers and Semi-trailers |
