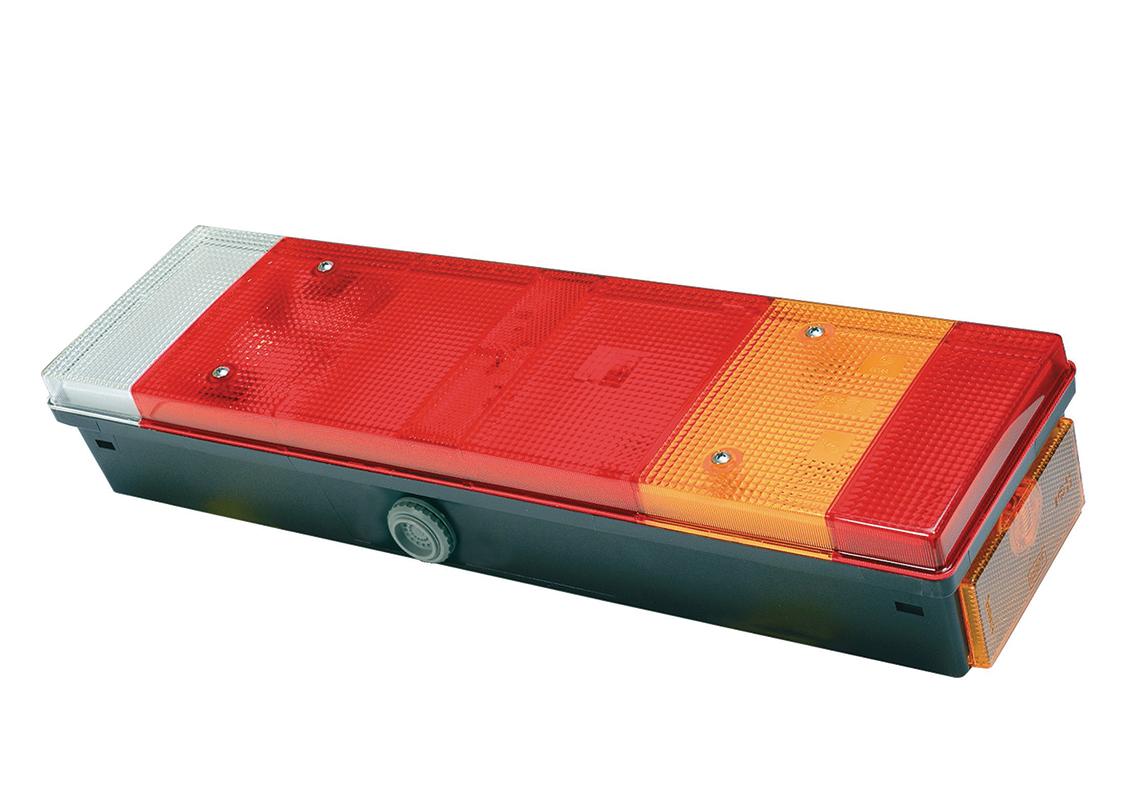

LC7 - Rear lamp Right with alarm and AMP 1.5 - 7 pin side conn
Ref. 169330 Show/hide other part numbers
- Ref. LC7 K4 V 41 CA
- Ref. 5001864537
- Voltage : 12/24 V
- Source : Bulbs
- Connector : AMP 1.5 - 7 pin side connector
- Side : Right
- Fixation Bolt Distance : 160 mm
Not all products are available in all markets.
Technical characteristics
| Brand | VIGNAL | |
|---|---|---|
| Product Type | Complete lamp | |
| Manufacturer | Renault Trucks | |
| Voltage | 12/24 V | |
| Source | Bulbs | |
| Connector | AMP 1.5 - 7 pin side connector | |
| Mounting Direction | Horizontal+Vertical | |
| Side | Right | |
| Shape | Rectangle | |
| Fixation Bolt Distance | 160 mm | |
| Length | 464 mm | |
| Width | 130 mm | |
| Depth | 83 mm | |
| Main Functions | Indicator, Stop, Position, Reverse, Fog, Rear reflector, End-outline marker lamp, Side position, Side reflector | |
| Specific Functions | Back up alarm | |
| ADR | ADR | |
| ECE | E2 88035 | |
| Industry | Agriculture, Construction, Forestry, Handling and Forklifts, Mining, Trucks, Vans and Chassis cab |
Applications
Construtor
Model
reference
Start date
End date
Construtor :
RENAULT TRUCKS
Model :
MAGNUM
reference :
5001864537
Start date :
09/2004
End date :
01/2006
Construtor :
RENAULT TRUCKS
Model :
PREMIUM
reference :
5001864537
Start date :
09/2004
End date :
01/2006
Construtor :
RENAULT TRUCKS
Model :
KERAX
reference :
5001864537
Start date :
09/2004
End date :
09/2006
