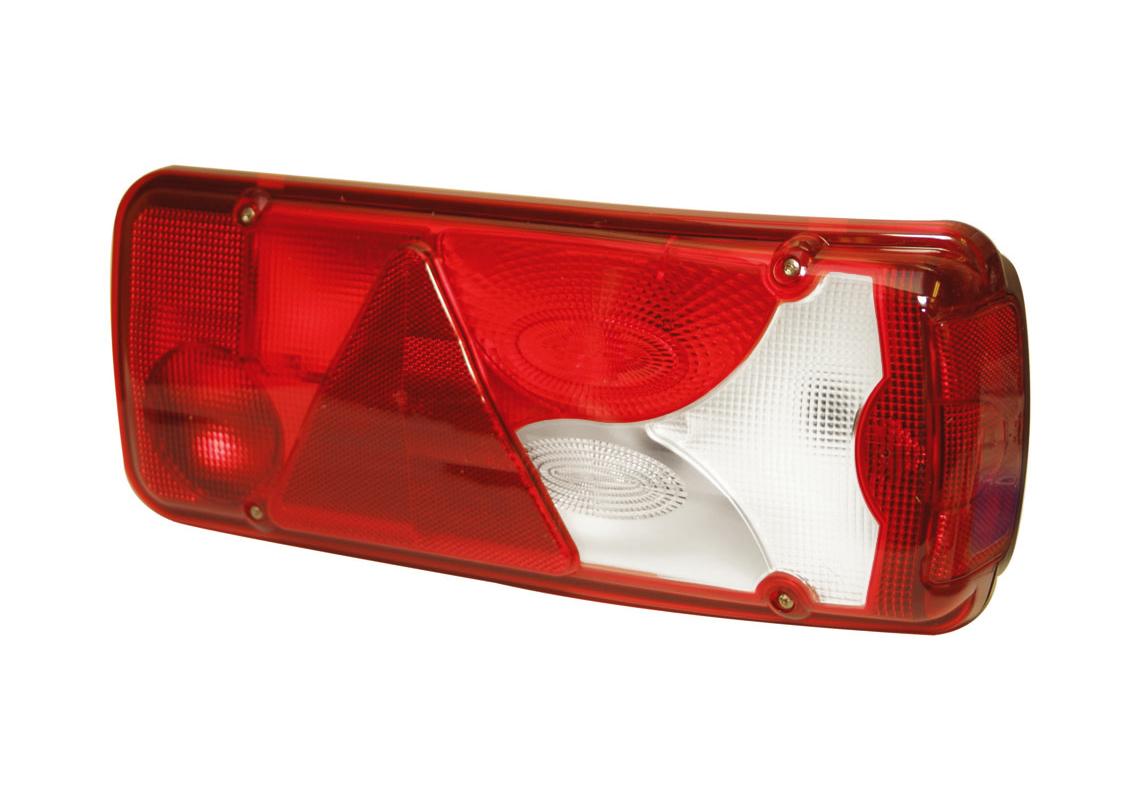

LC8T - Rear lamp Right, License plate, additional conns, AMP 1.5 rear conn
Ref. 156390 Show/hide other part numbers
- Ref. LC8 TH 22 M
- Voltage : 12/24 V
- Source : Bulbs

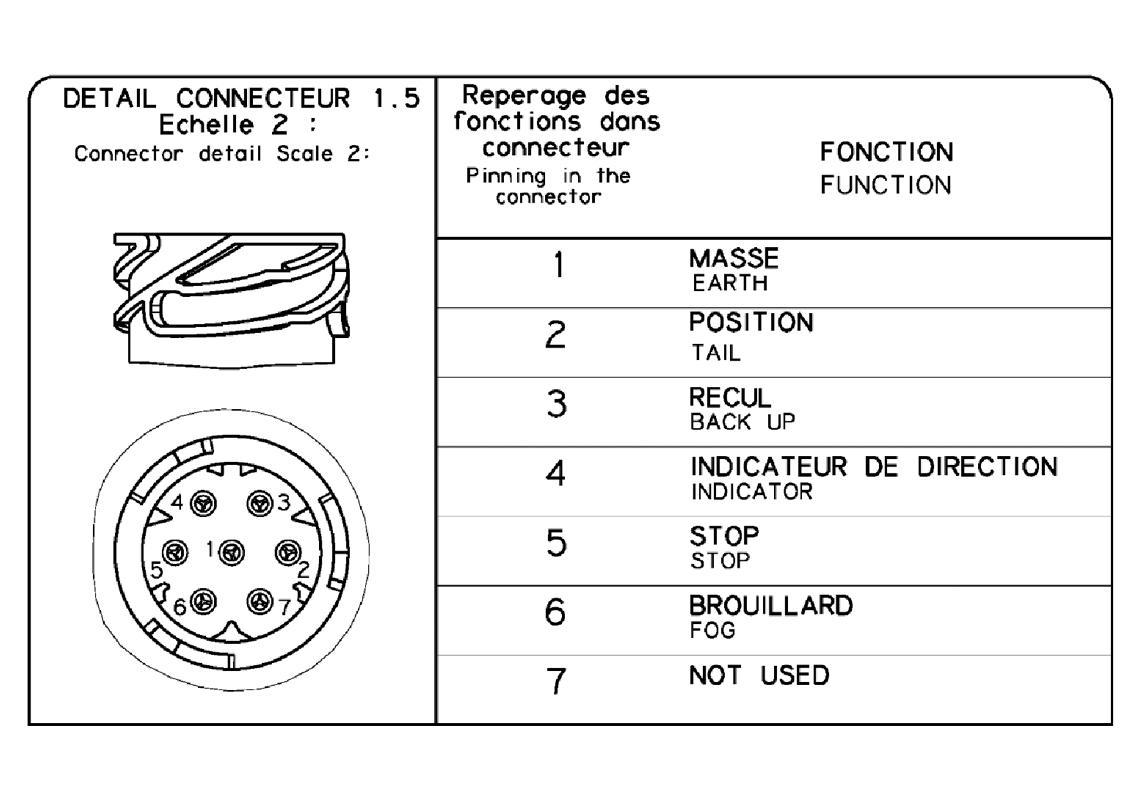

- Connector : AMP 1.5 - 7 pin rear connector
- Side : Right
- Fixation Bolt Distance : 152 mm
Not all products are available in all markets.
Technical characteristics
| Brand | VIGNAL | |
|---|---|---|
| Product Type | Complete lamp | |
| Voltage | 12/24 V | |
| Source | Bulbs | |
| Connector | AMP 1.5 - 7 pin rear connector | |
| Mounting Direction | Horizontal | |
| Side | Right | |
| Shape | Rectangle | |
| Fixation Bolt Distance | 152 mm | |
| Length | 400 mm | |
| Width | 160 mm | |
| Main Functions | Indicator, Stop, Position, Reverse, Fog, Triangular reflector, End-outline marker lamp, Side position, Side reflector | |
| Specific Functions | License plate lamp, Additional connectors\n | |
| ADR | ADR | |
| ECE | E2 2040 | |
| Industry | Trailers and Semi-trailers |
