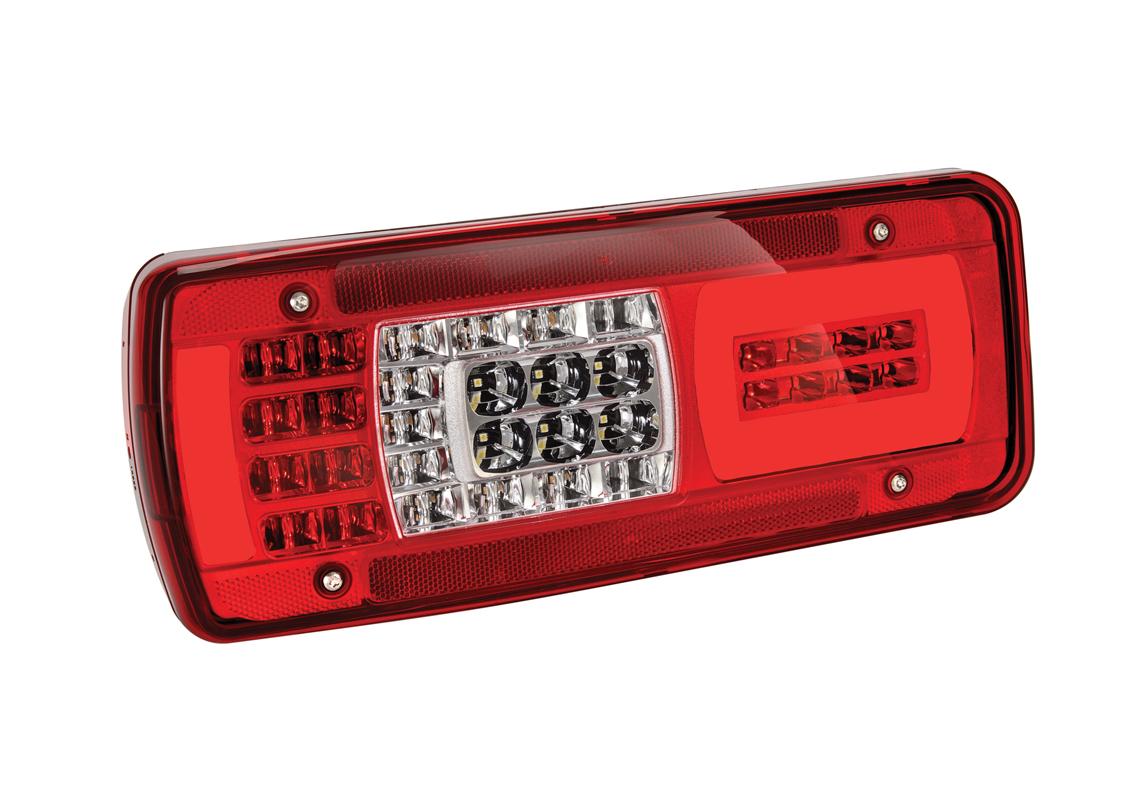

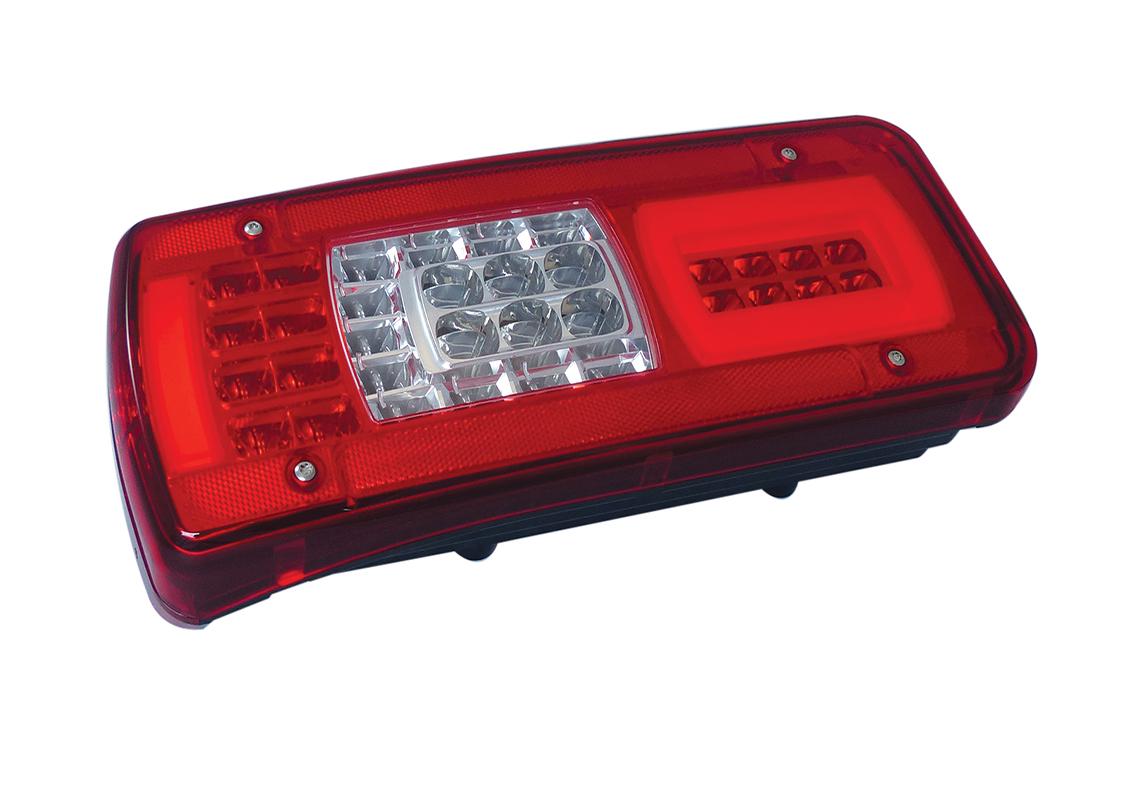

LC11 LED - Rear lamp LED Left with HDSCS 8 pin rear connector IVECO
Ref. 160110 Show/hide other part numbers
- Ref. LC11 LED KI 11
- Ref. 5802240293
- Ref. 58012000570
- Voltage : 24V
- Source : LED

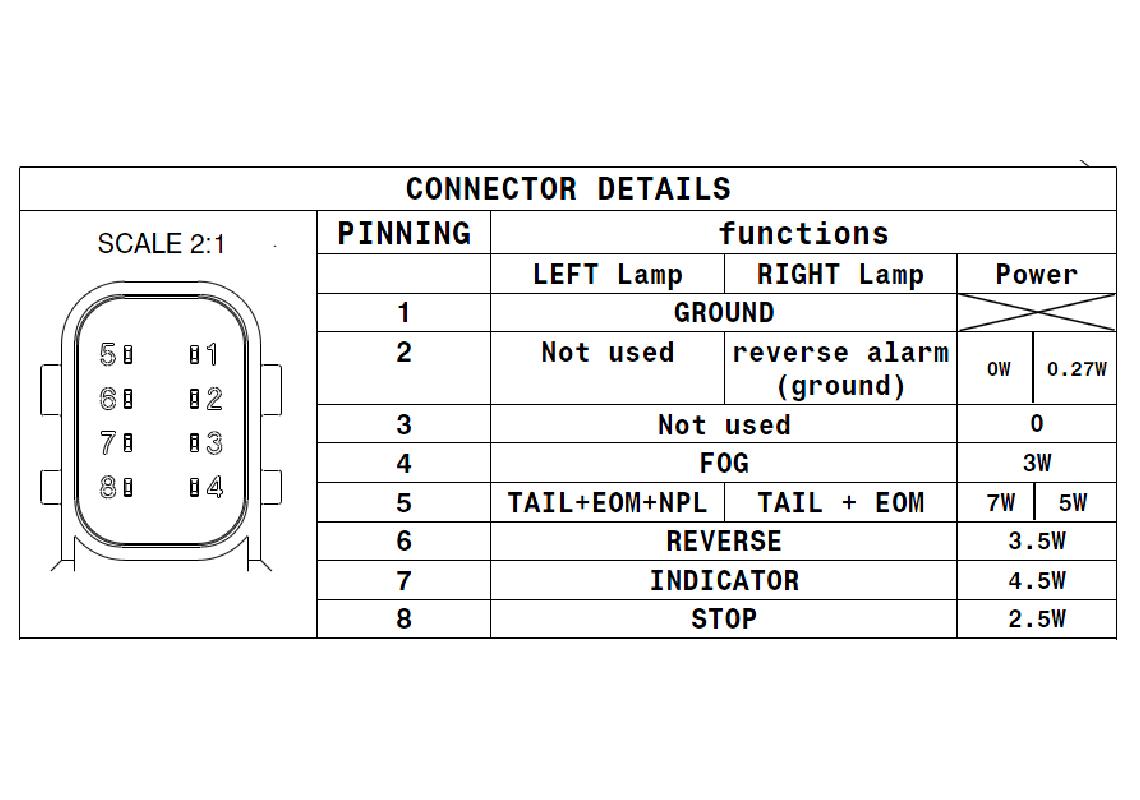

- Connector : HDSCS 8 pin rear connector, IVECO rear connector
- Side : Left
- Fixation Bolt Distance : 152 mm
Not all products are available in all markets.
Technical characteristics
| Brand | VIGNAL | |
|---|---|---|
| Product Type | Complete lamp | |
| Manufacturer | Iveco | |
| Voltage | 24V | |
| Source | LED | |
| Connector | HDSCS 8 pin rear connector, IVECO rear connector | |
| Mounting Direction | Horizontal | |
| Side | Left | |
| Shape | Rectangle | |
| Fixation Bolt Distance | 152 mm | |
| Length | 400 mm | |
| Width | 160 mm | |
| Depth | 84 mm | |
| Main Functions | Indicator, Stop, Position, Reverse, Fog, Rear reflector, End-outline marker lamp, Side position, Side reflector | |
| EMC | E2 10R-047585 | |
| ADR | ADR | |
| ECE | ECE | |
| Industry | Trucks |
Applications
Construtor
Model
reference
Start date
End date
Construtor :
IVECO
Model :
STRALIS - TRAKKER
reference :
58012000570
Start date :
03/2016
End date :
Construtor :
IVECO
Model :
STRALIS - TRAKKER
reference :
5802240293
Start date :
03/2016
End date :
