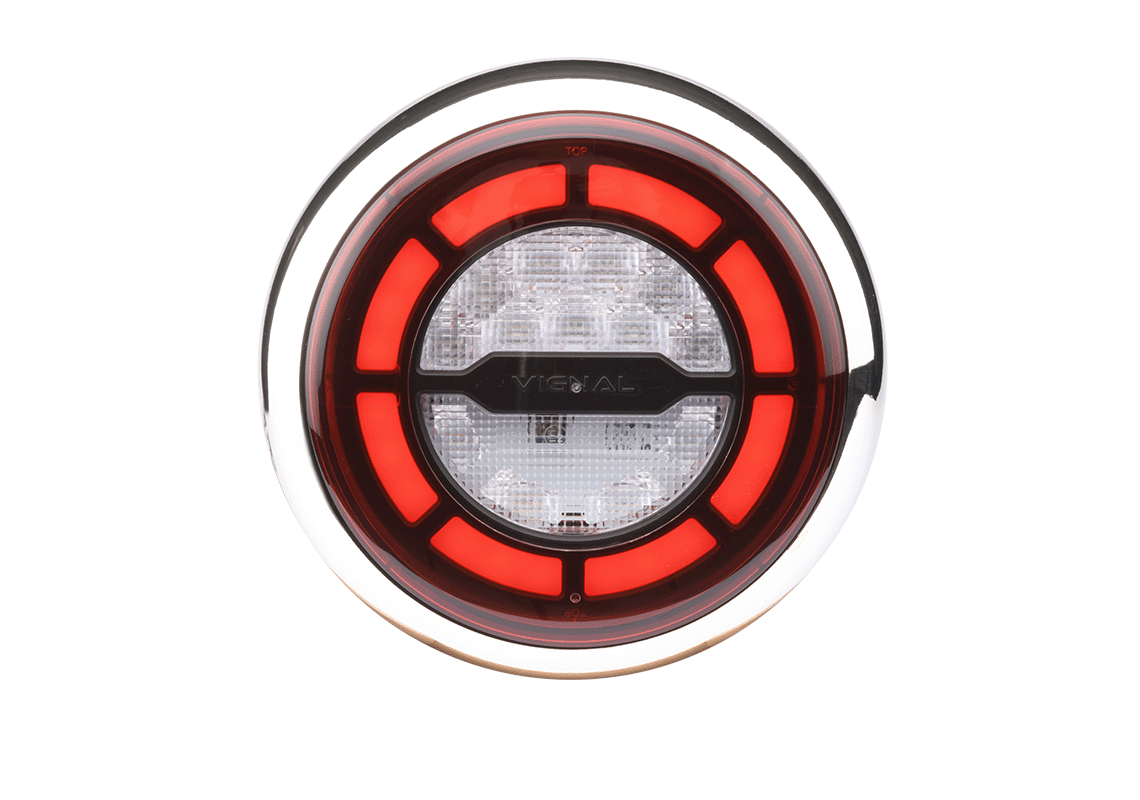

LCR19 - Rear lamp LED LCR19 BLACK VERSION - 24V, additional connectors
Ref. 213300 Show/hide other part numbers
- Ref. LCR19 LED AB03
- Voltage : 24V
- Source : LED
- Connector : AMP MCP 4 pin
- Fixation Bolt Distance : 45 mm
- Main Functions : Indicator, Stop, Glowing Position
- Specific Functions : Additional connectors
Not all products are available in all markets.
Technical characteristics
| Brand | VIGNAL | |
|---|---|---|
| Product Type | Complete lamp | |
| Voltage | 24V | |
| Source | LED | |
| Max Current | Additional connector A position : 0.5A (14W max), Additional connector B position : 0.5A (14W max) | |
| Connector | AMP MCP 4 pin | |
| Mounting Direction | Horizontal | |
| Side | Left/Right | |
| Lens Material | Polycarbonate | |
| Shape | Round | |
| Fixation Bolt Distance | 45 mm | |
| Depth | 45 mm | |
| Diameter | 140 mm | |
| Weight | 0,29 Kg | |
| Main Functions | Indicator, Stop, Glowing Position | |
| Specific Functions | Additional connectors | |
| IP protection | IP69K | |
| EMC | ECE R10 | |
| ADR | ADR | |
| ECE | E2 19106 | |
| Industry | Agriculture, Construction, Trailers and Semi-trailers, Trucks |
