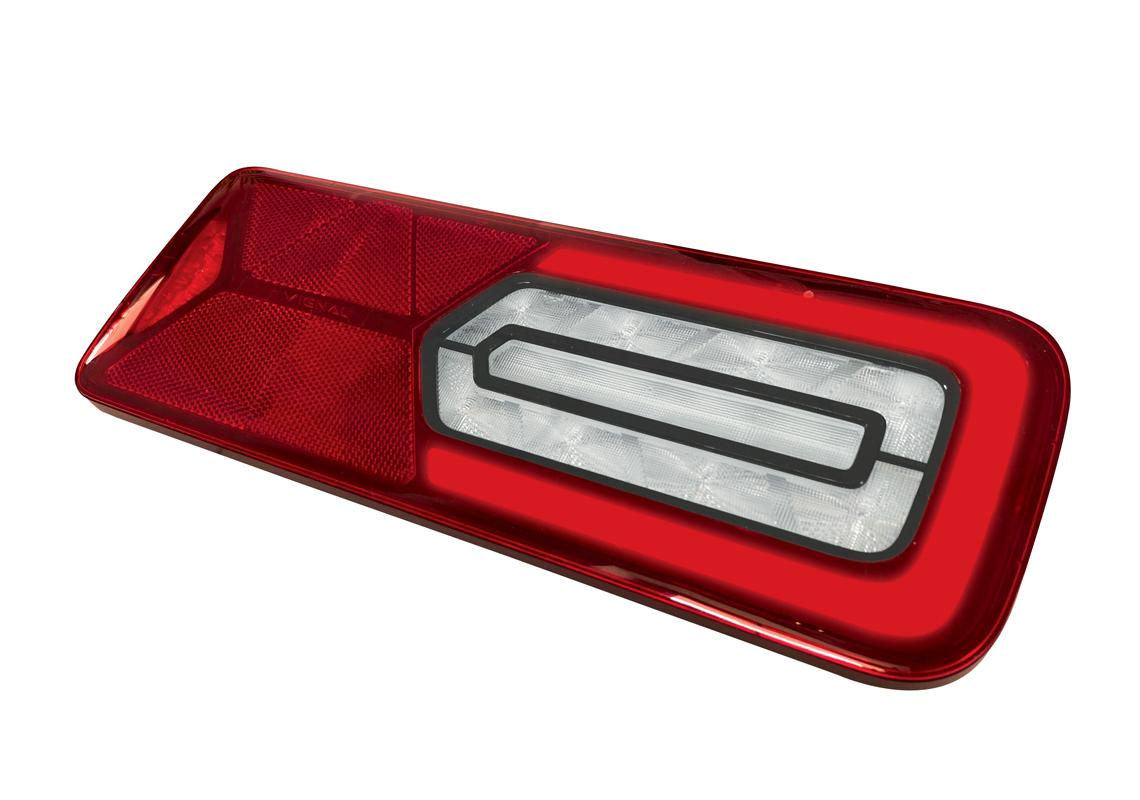

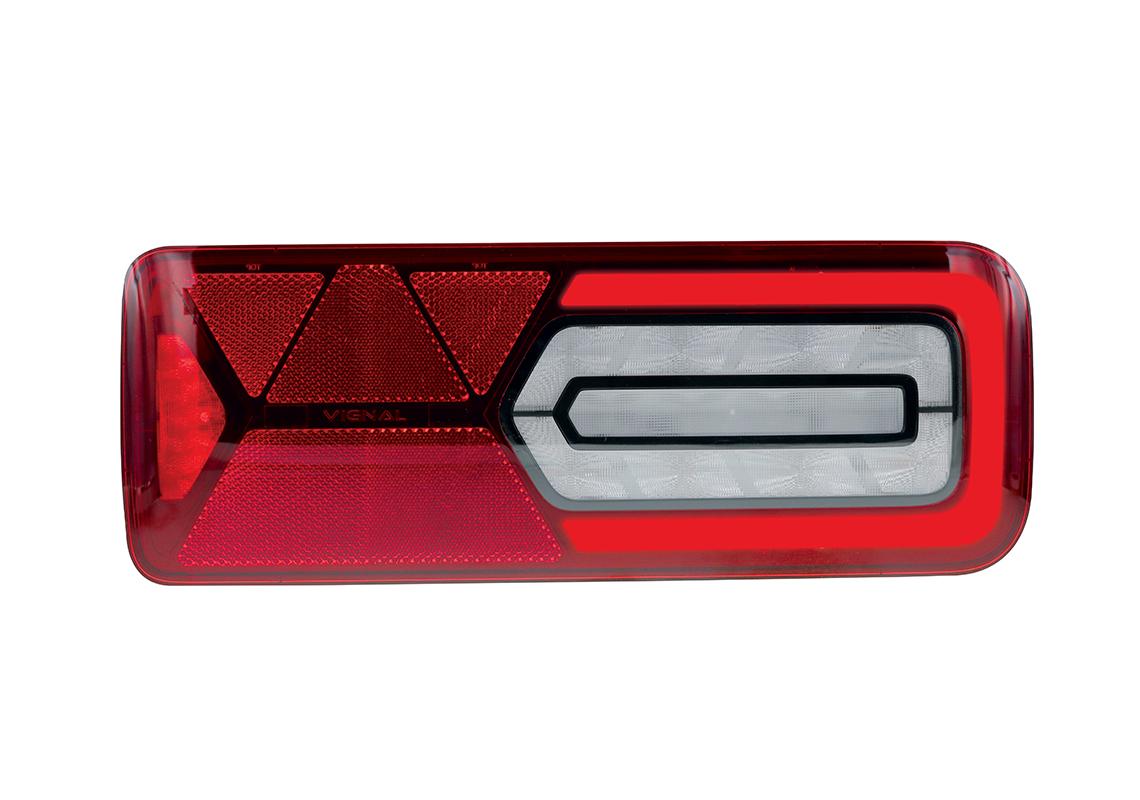

LC12 LED - Rear lamp LED GLOWING Right 24V, additional conns, triangle BLACK EDITION
Ref. 161710 Show/hide other part numbers
- Ref. LC12 LED GTB 12R
- Voltage : 24V
- Source : LED
- Connector : AMP 1.5 - 7 pin
- Side : Right
- Fixation Bolt Distance : 152 mm
Not all products are available in all markets.
Technical characteristics
| Brand | VIGNAL | |
|---|---|---|
| Product Type | Complete lamp | |
| Voltage | 24V | |
| Source | LED | |
| Max Current | Additional connector N° 1 position : 0.5A (15W max), Additional connector N° 2 position : 0.5A (15W max), Additional connector N° 3 reverse : 1A (35W max), Additional connector N° 4 flashing side marker : 0.5A (15W max) | |
| Connector | AMP 1.5 - 7 pin | |
| Mounting Direction | Horizontal | |
| Side | Right | |
| Lens Material | Polycarbonate | |
| Shape | Rectangle | |
| Fixation Bolt Distance | 152 mm | |
| Length | 350 mm | |
| Width | 130 mm | |
| Depth | 40 mm | |
| Main Functions | Dynamic indicator, Stop, Position, Reverse, Fog, Triangular reflector | |
| Specific Functions | Additional connectors, BLACK EDITION black mask | |
| IP protection | IP69K | |
| EMC | E2 10R-0516057 | |
| ADR | ADR | |
| ECE | E2 18042, ECE | |
| Industry | Trailers and Semi-trailers |
