Interior buzzer for movement of doors for bus and coach

Interior buzzer for movement of doors for bus and coach

BHDP - Interior buzzer for movement of doors for bus and coach

Ref. BHDP

Interior buzzer for movement of doors for bus and coach

Are you looking for an interior buzzer to generate sounds in order to indicate door opening and closing in a passenger vehicle? Are you looking for an R118 approved sound solution for coaches and buses? Go for BHDP! BHDP is an indoor buzzer for opening... Read more

Data Sheet

Not all products are available in all markets.

Need some advices ? Any questions ? We call you back !

Name *

Email *

Telephone *

Zip code *

Country *

* Mandatory fields

All data provided to us is only used by our services, as part of your call request and any commercial relationship that may result (learn more).

Technical characteristics Similar products

Technical characteristics

Brand		SESALY
Product Type		Accessories
Voltage		24V
Amperage		0,025 AMP at 24V
Fixation		Fitting on standard relay socket
Options, upon request		(30 mm x 30 mm x 30 mm) cover to reduce sound level
Decibel		90 dB
Main Functions		Warning sound system for door opening and closing
ECE		R118
Industry		Buses and Coaches

Similar products

Standard audible reversing alarm (from 77 to 97 dB)

BSR67D.124

Standard back-up alarm - Standard audible reversing alarm (from 77 to 97...

Priority siren and speaker (firefighter)

KE S.POM

Priority warning siren - Priority siren and speaker (firefighter)

Reverse alarm for LC8 rear lamp

001830

Back-up alarm - Reverse alarm for LC8 rear lamp

White noise exterior reverse alarm for bus and coach

BRI BBS-097

Multifrequency back-up alarm - White noise exterior reverse alarm for bus and...

Back-up alarm 12-24V 82-102DB

630110

Standard back-up alarm - Back-up alarm 12-24V 82-102DB

Standard back-up alarm (97 dB)

BSRAV.124

Standard back-up alarm - Standard back-up alarm (97 dB)

AVAS + 12 sounds programmable diffuser for electric bus/coach

STP

SESA Tunes - AVAS + 12 sounds programmable diffuser for...

Exterior reverse alarm for bus and coach

BSR678D.124

Standard back-up alarm - Exterior reverse alarm for bus and coach

Exterior multi-function micro alarm for bus and coach

BSD 24

Back-up alarm - Exterior multi-function micro alarm for bus and...

Multi-frequency back-up alarm 87db

D13807

Multifrequency back-up alarm - Multi-frequency back-up alarm 87db

Ultra compact 24Vdc (86dB) reverse alarm

BACK UP ALARM 24V

Back-up alarm - Ultra compact 24Vdc (86dB) reverse alarm

Audible reversing alarm BSR678.124

BSR678.124

Standard back-up alarm - Audible reversing alarm BSR678.124

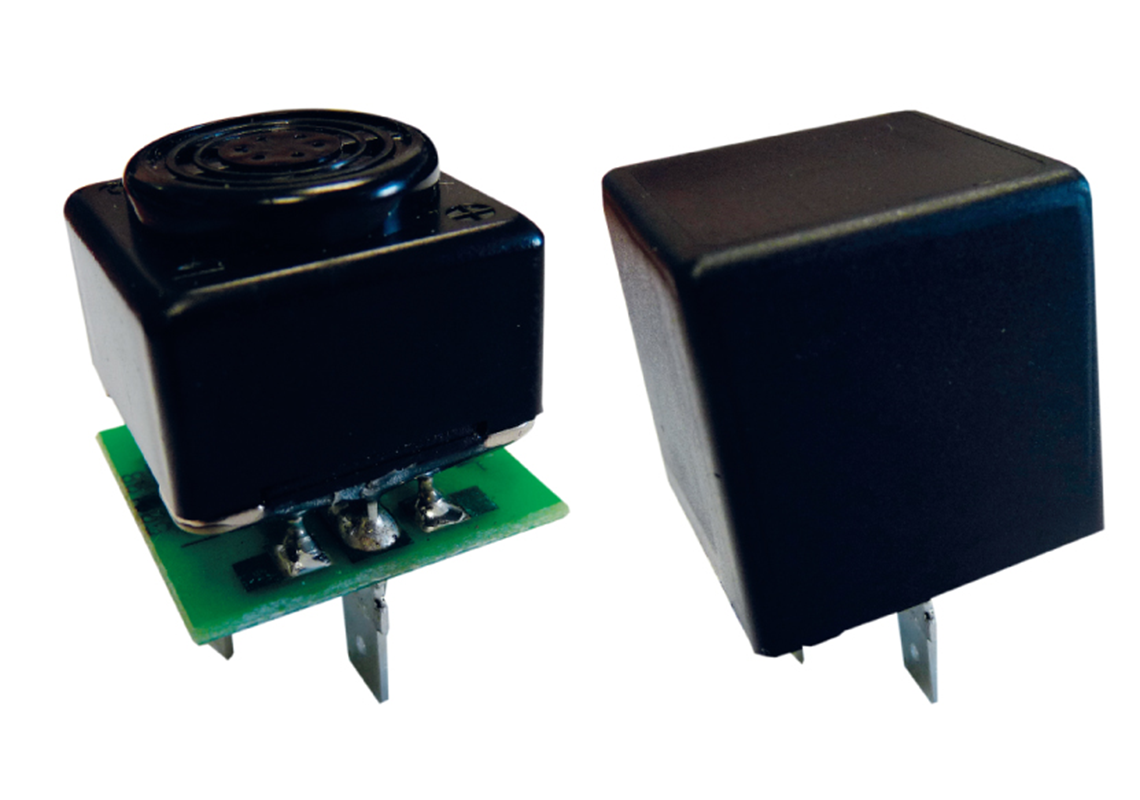

Are you looking for an interior buzzer to generate sounds in order to indicate door opening and closing in a passenger vehicle? Are you looking for an R118 approved sound solution for coaches and buses? Go for BHDP! BHDP is an indoor buzzer for opening doors supplied by SESALY. It complies with ECE R118 (smoke fires) regulations.This interior sound signaling solution offers many benefits:

It works with a operating voltage of 24Vdc
Its consumption is very low, only 0.025A.
Its sound power is 90 db. *
Its single tone activates when power is turned on.

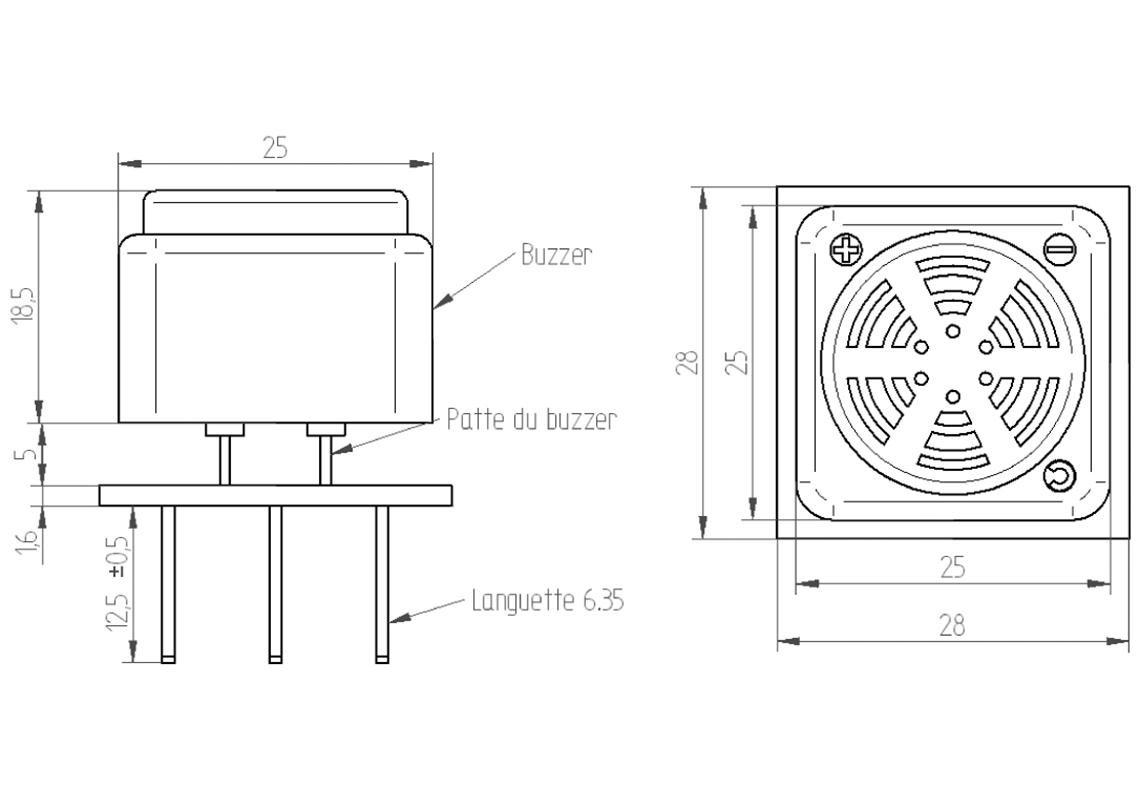

It is connected with 3 6.35 tongues: 2 for the power supply and 1 for the polarizing slot.
Its installation is realised with fitting is done on a standard relay socket.
A cover (30mm x 30mm x 30mm) to reduce the sound level can be added on request (as an option).

* + / - 2dB at 100 mm
