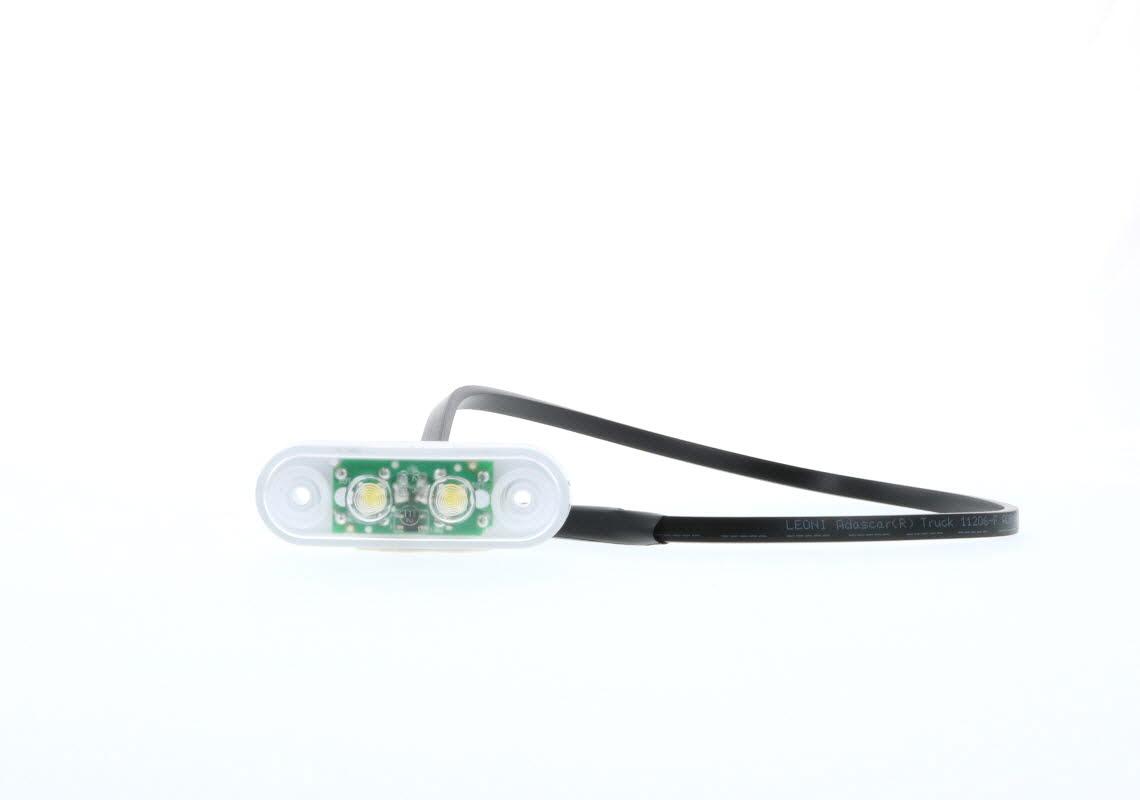

FE04 LED - Front position lamp LED 24V cristal Asca, Samro, Trouillet
Ref. 104310
- Voltage : 24V
- Source : LED
- Color : Crystal
- Connector : Cable plat
- Mounting Direction : Horizontal+Vertical
- Cable Length : 5000 mm
- Fixation Bolt Distance : 52 mm
Not all products are available in all markets.
Technical characteristics
| Brand | VIGNAL | |
|---|---|---|
| Product Type | Complete lamp | |
| Voltage | 24V | |
| Source | LED | |
| Color | Crystal | |
| Connector | Cable plat | |
| Mounting Direction | Horizontal+Vertical | |
| Cable Length | 5000 mm | |
| Shape | Oval | |

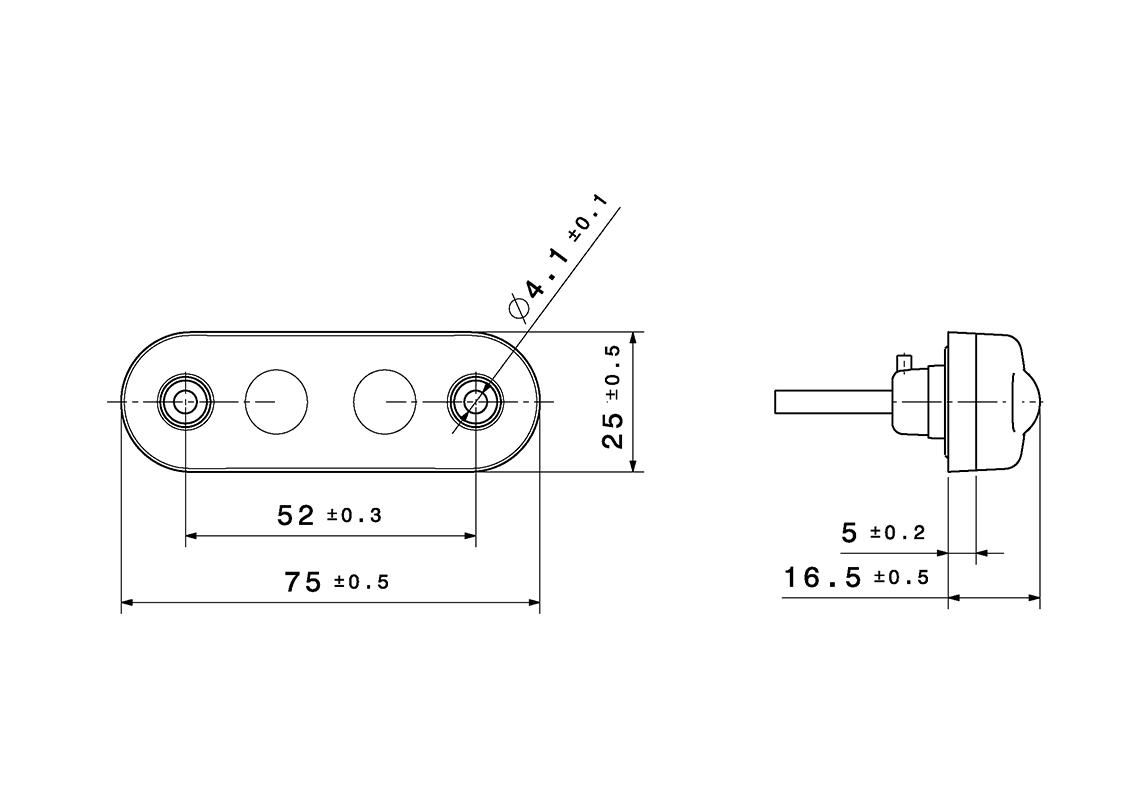

| Fixation Bolt Distance | 52 mm | |
| Length | 75 mm | |
| Width | 25 mm | |
| Main Functions | Front position | |
| ADR | ADR | |
| ECE | E2 05010, ECE | |
| Industry | Construction, Forestry, Handling and Forklifts, Mining, Trailers and Semi-trailers, Trucks |
Applications
Construtor
Model
reference
Start date
End date
Construtor :
ASCA
Model :
ASCA
reference :
Start date :
End date :
Construtor :
SAMRO / TROUILLET
Model :
SAMRO
reference :
Start date :
End date :
