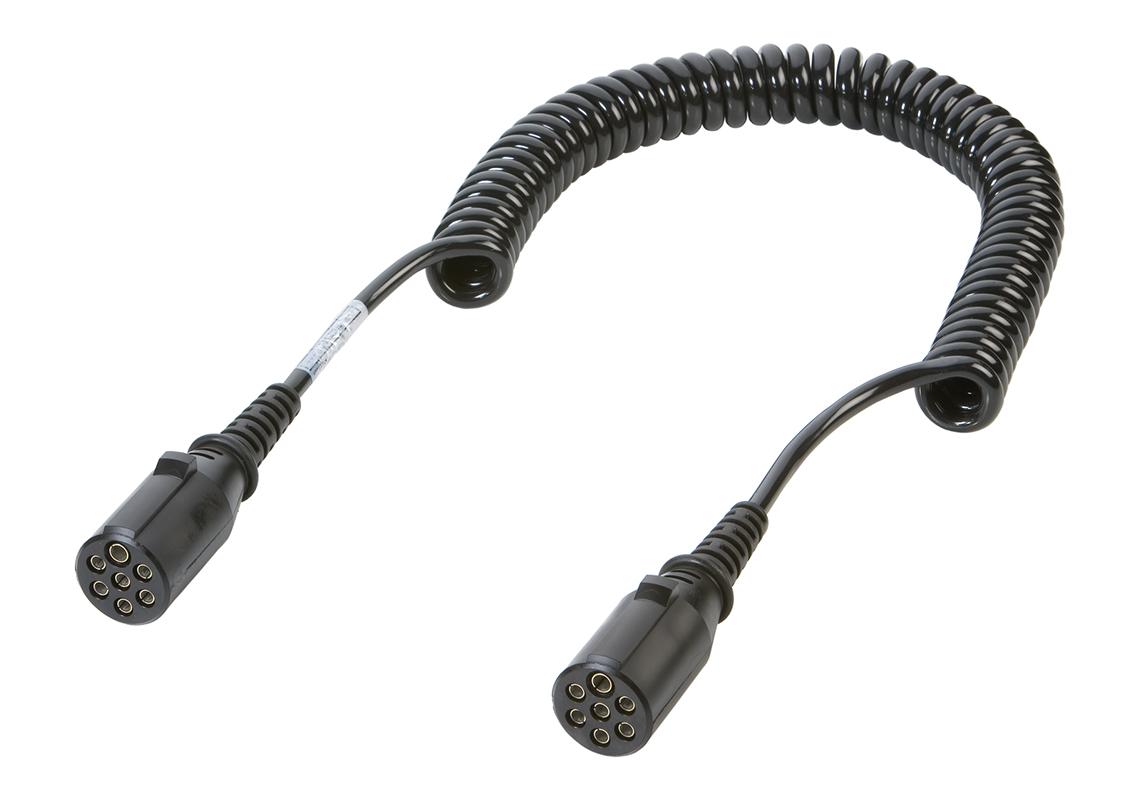

C7P - Coil for trailer 24N + Plug Overmoulded - ISO 1185
Ref. 611070
- Product Type : Coils
- Voltage : 24V
- Contact Termination : Screw contact
- Housing Material : Reinforced composite
- Working Length : 3 m
- Max. Extension Length : 4,5 m
- Standard : ISO 1185 - Type N
- Number of Poles : 7P
Not all products are available in all markets.
Technical characteristics
| Product Type | Coils | |
|---|---|---|
| Voltage | 24V | |
| Contact Termination | Screw contact | |
| Housing Material | Reinforced composite | |
| Working Length | 3 m | |
| Max. Extension Length | 4,5 m | |
| Standard | ISO 1185 - Type N | |
| Number of Poles | 7P | |
| Wire Cross-Sectional Area | 6x 1, 0mm² + 1x 1, 5mm² | |
| IP protection | IP44 | |
| Operation Temperatures | -40°C to +85°C | |
| Industry | Trailers and Semi-trailers, Trucks |
