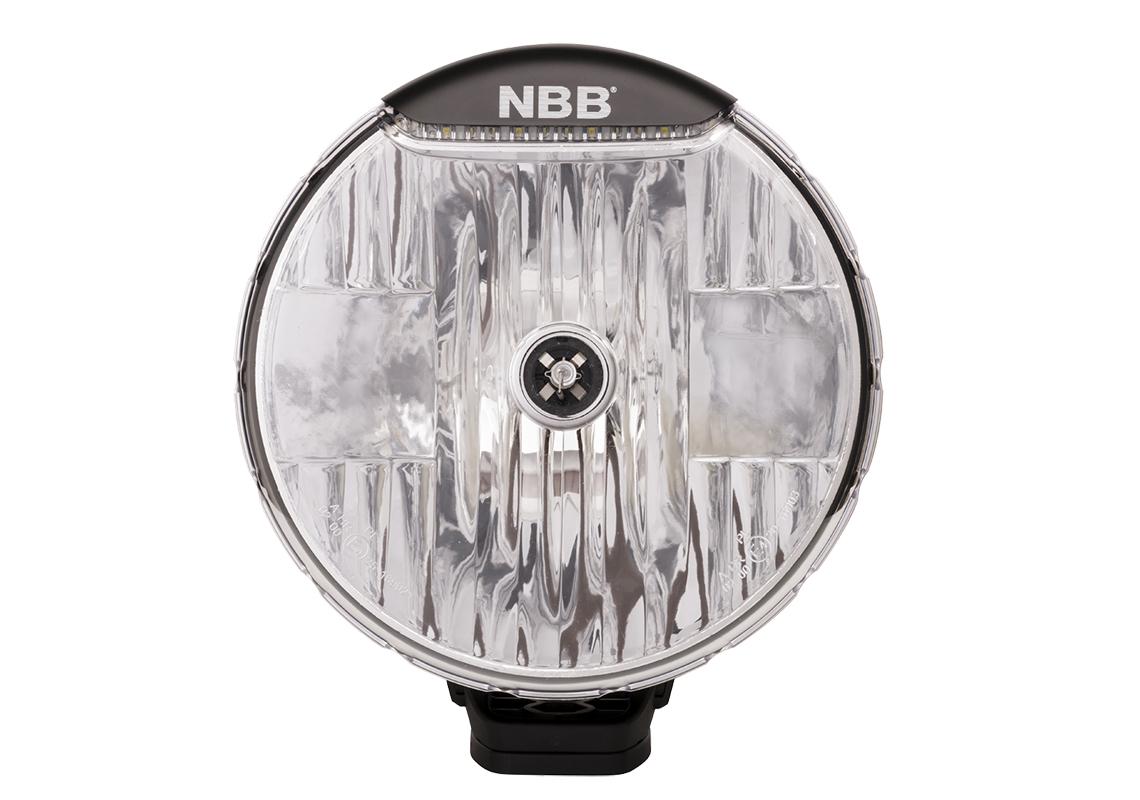

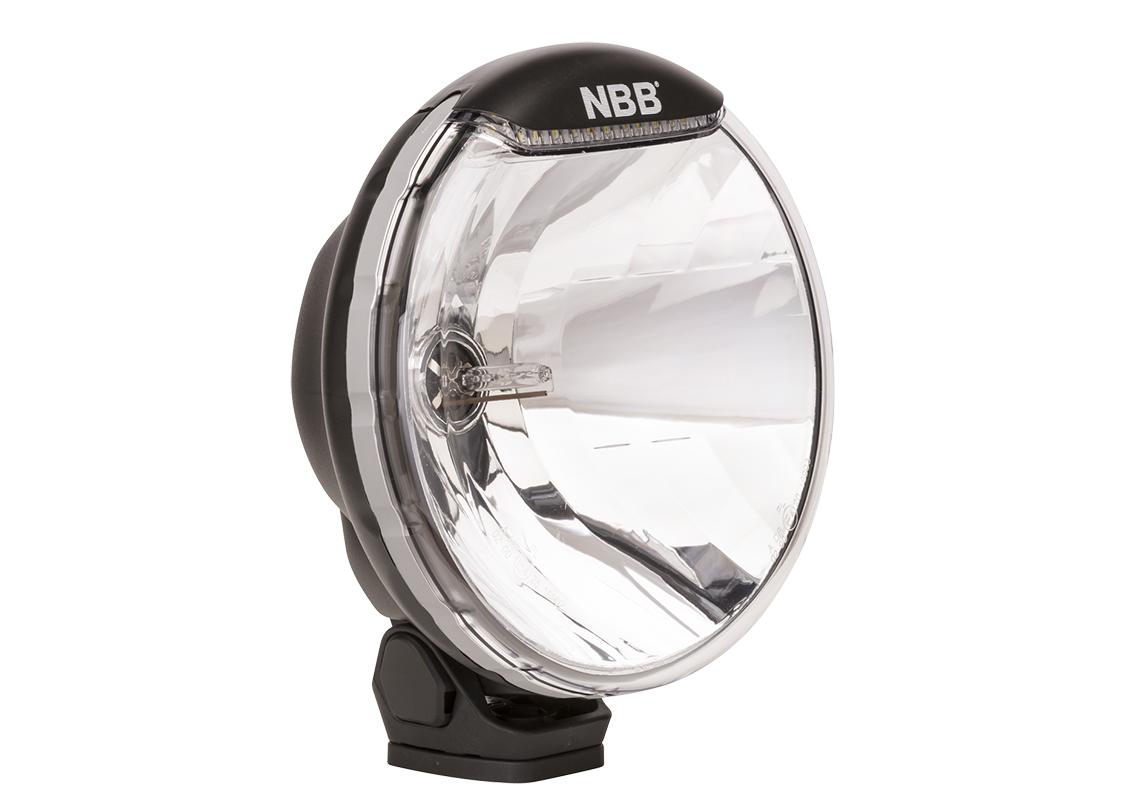

ALPHA 225 XENON - Auxiliary light XENON 12/24V
Ref. D14165 Show/hide other part numbers
- Ref. ALPHA225XENONRANGE
- Ref. A0331A657300
- Voltage : 24V
- Source : XENON
- Bulb : 35W D1S
- Amperage : 1,8 AMP at 24VDC
- Connector : Wiring harness
Not all products are available in all markets.
Technical characteristics
| Brand | NBB | |
|---|---|---|
| Voltage | 24V | |
| Source | XENON | |
| Bulb | 35W D1S | |
| Amperage | 1,8 AMP at 24VDC | |
| Connector | Wiring harness | |
| Mounting | Pedestal | |
| Lens Material | Plastic | |
| Housing Material | Black fibre reinforced plastic | |
| Shape | Round | |

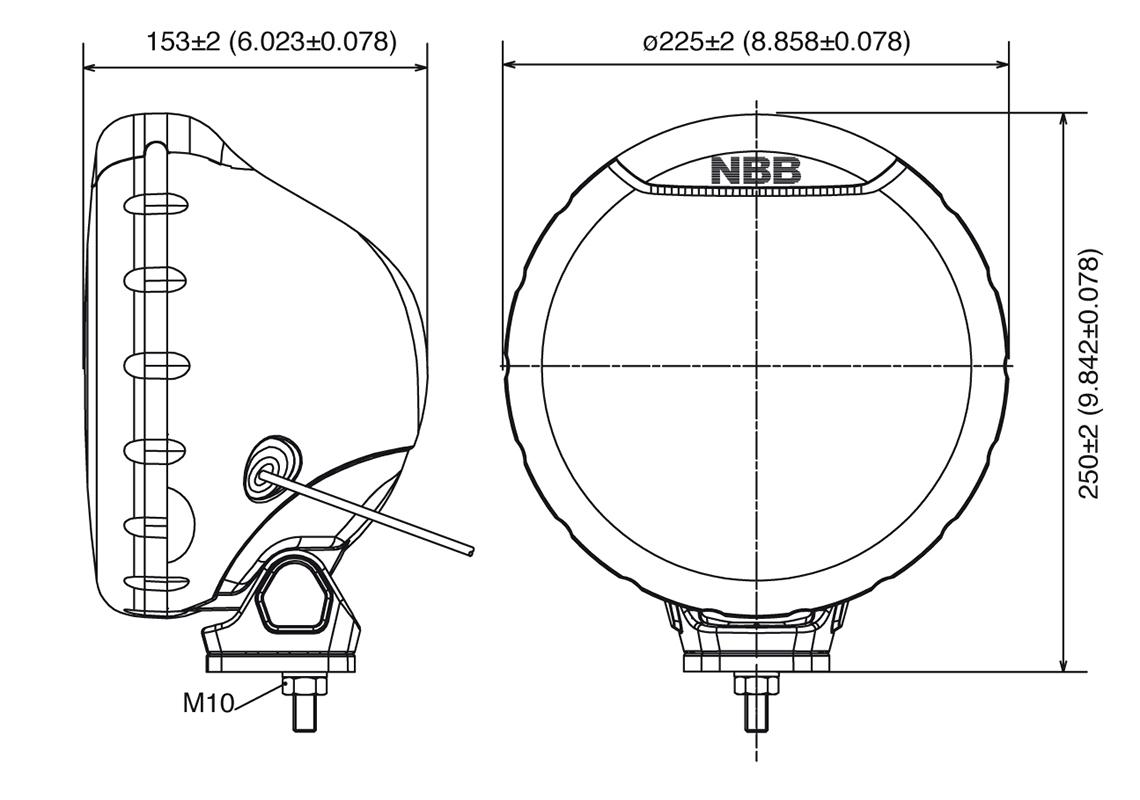

| Length | 225 mm | |
| Depth | 153 mm | |
| Height | 250 mm | |
| Operation Temperatures | -40°C to +60°C | |
| Salt Spray Test | ISO 9228 | |
| Industry | Agriculture, Construction, Forestry, Handling and Forklifts |
