Accessories wired systems - 7" AHD split screen
Ref. D16134 Show/hide other part numbers
- Ref. 69MON049

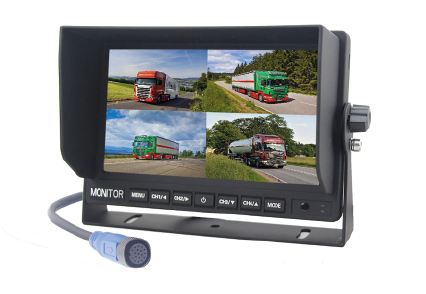

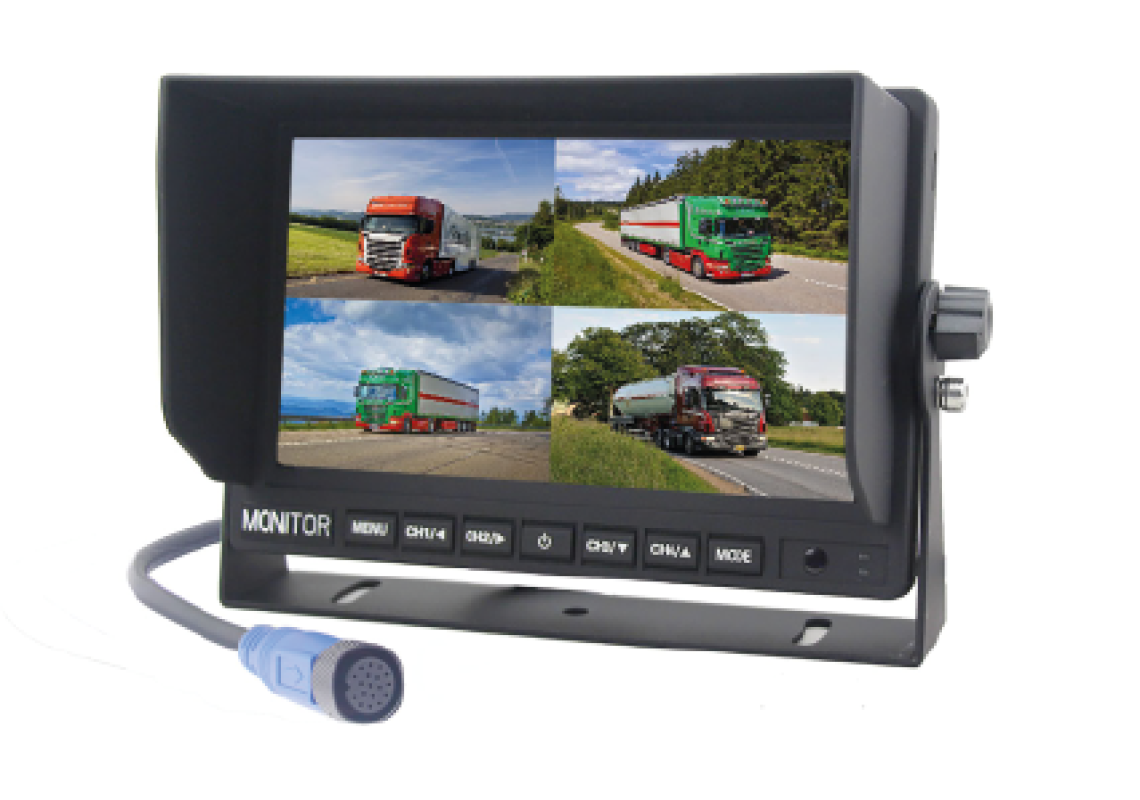

7-inch TFT colour LCD screen with 1024*RGB*600 resolution. Supports up to 4 channels of 1080P/720P/CVBS input. Supports single/double/triple/quadruple image display.
Removable sunshield.
Read more
- Color : Yes
Not all products are available in all markets.
Technical characteristics
| Product Type | Monitor | |
|---|---|---|
| Voltage | 12/24 V | |
| Consumption | 9W | |
| Color | Yes | |
| Screen display | Multi-display | |
| Screen Size | 7" | |
| Resolution | 1024 x 3 (RGB) x 600 | |
| Max Cameras | 4 cameras max | |
| Audio | Built in Speaker | |
| Display Modes | Multi Display | |
| Sunshade | Yes | |
| Video Standard | PAL / NTSC/AUTO | |
| Operation Temperatures | -20°C to +70°C | |
| Industry | Agriculture, Buses and Coaches, Construction, Trailers and Semi-trailers, Trucks, Vans and Chassis cab |
